DATORKER® Strain Wave Gearing Systems

Also listed as DATORKER® Strain Wave Gearing System

A wave generator, a flex spline, and a circular spline. The elliptical generator flexes the thin toothed cup against a rigid ring that has more teeth, reducing speed and multiplying torque at ratios a conventional gear cannot pack into the same space. Standard, heavy-load, and lightweight configurations cover assembled units and component sets.

15 products

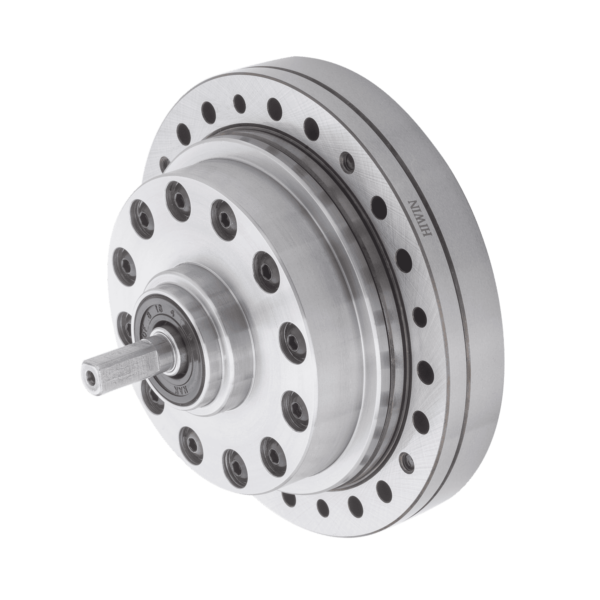

DSC-AJ-M Series

Solid Shaft Strain Wave Gear Unit with Crossed Roller Bearing

Rated torque 5.4–294 Nm

Solid shaft input High tilting moment

Configure Size

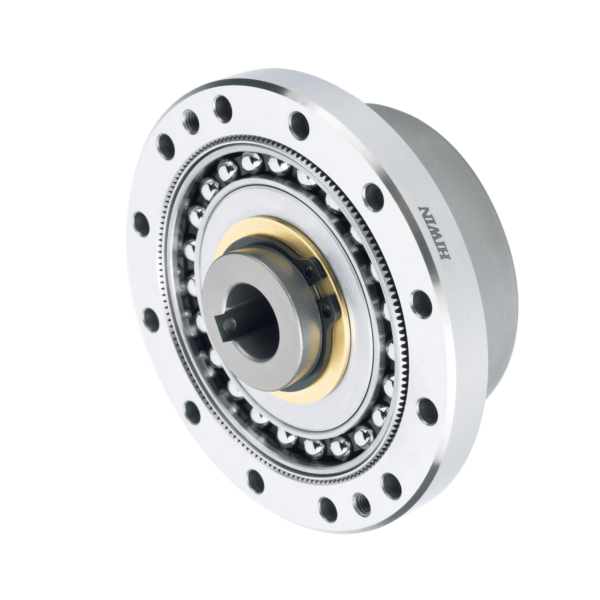

DSC-CO Series

Component Strain Wave Gearset with Oldham Input

Rated torque 3.5–294 Nm

Component set Oldham input

Configure Size
DSC-PO Series

Combination Strain Wave Gear Unit with Output Bearing

Rated torque 5.4–294 Nm

Output bearing included Oldham input

Configure Size
DSC-PO-M Series

High Tilting Moment Strain Wave Gear Unit

Rated torque 5.4–294 Nm

Output bearing included High tilting moment

Configure Size
DSH-AH Series

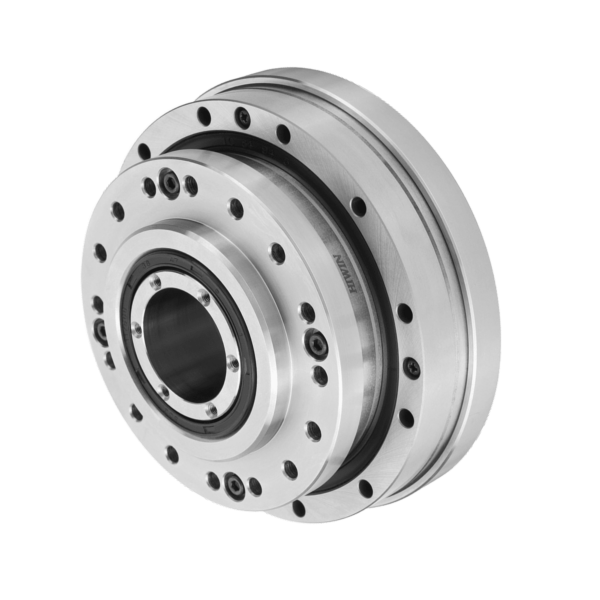

Sealed Hollow Strain Wave Gear Unit

Rated torque 5.4–294 Nm

Hollow shaft Sealed

Configure Size
DSH-AJ Series

Ring-Type Strain Wave Gear Unit with Solid Shaft

Rated torque 5.4–294 Nm

Ring type Output bearing

Configure Size
DSH-PH Series

Hollow-Shaft Strain Wave Gear Unit

Rated torque 5.4–294 Nm

Hollow shaft

Configure Size
DSH-PO Series

Strain Wave Gear with Self-Aligning Input (Oldham Combination Type)

Rated torque 5.4–294 Nm

Self-aligning input

Configure Size
DGC-CO Series

Heavy-Load Cup-Type Strain Wave Gear Component

Rated torque 7.0–382 Nm

Heavy load · +30% torque

Configure Size
DGC-PO Series

Heavy-Load Cup-Type Strain Wave Gear Unit

Rated torque 7.0–382 Nm

Heavy load · +30% torque Output bearing

Configure Size
DGH-AH Series

Heavy-Load Sealed Hollow Strain Wave Gear

Rated torque 7.0–382 Nm

Heavy load Sealed

Configure Size
DGH-AJ Series

Heavy-Load Ring-Type Strain Wave Gear with Solid Shaft

Rated torque 7.0–382 Nm

Heavy load Ring type

Configure Size
DGH-PH Series

Heavy-Load Hollow-Shaft Strain Wave Gear

Rated torque 7.0–382 Nm

Heavy load Hollow shaft

Configure Size
DGH-PO Series

Heavy-Load Strain Wave Gear with Self-Aligning Input (Oldham Combination Type)

Rated torque 7.0–382 Nm

Heavy load Self-aligning input

Configure Size
DSC-CE-L Series

Lightweight Cup-Type Strain Wave Gear Component

Rated torque 5.4–137 Nm

Lightweight

Configure Size

DSC-AJ-M Series

Solid Shaft Strain Wave Gear Unit with Crossed Roller Bearing

Solid shaft input High tilting moment

Choose for assembled joints driven through a supported solid shaft

Sizes

6 models · 14–40

Rated torque

5.4–294 Nm

Configure Size
DSC-CO Series

Component Strain Wave Gearset with Oldham Input

Component set Oldham input

Choose for the lightest gearset when the joint supplies its own bearing

Sizes

7 models · 11–40

Rated torque

3.5–294 Nm

Configure Size
DSC-PO Series

Combination Strain Wave Gear Unit with Output Bearing

Output bearing included Oldham input

Choose for a drop-in unit whose output bearing takes axial and radial load directly

Sizes

6 models · 14–40

Rated torque

5.4–294 Nm

Configure Size
DSC-PO-M Series

High Tilting Moment Strain Wave Gear Unit

Output bearing included High tilting moment

Choose for joints under large moment loads, with self-aligning Oldham input

Sizes

6 models · 14–40

Rated torque

5.4–294 Nm

Configure Size
DSH-AH Series

Sealed Hollow Strain Wave Gear Unit

Hollow shaft Sealed

Choose for sealed units passing cables through the axis

Sizes

6 models · 14–40

Rated torque

5.4–294 Nm

Configure Size
DSH-AJ Series

Ring-Type Strain Wave Gear Unit with Solid Shaft

Ring type Output bearing

Choose for ring-type joints with the bearing built in

Sizes

6 models · 14–40

Rated torque

5.4–294 Nm

Configure Size
DSH-PH Series

Hollow-Shaft Strain Wave Gear Unit

Hollow shaft

Choose for hollow-shaft joints in compact modules

Sizes

6 models · 14–40

Rated torque

5.4–294 Nm

Configure Size
DSH-PO Series

Strain Wave Gear with Self-Aligning Input (Oldham Combination Type)

Self-aligning input

Choose for simplified motor coupling and alignment

Sizes

6 models · 14–40

Rated torque

5.4–294 Nm

Configure Size

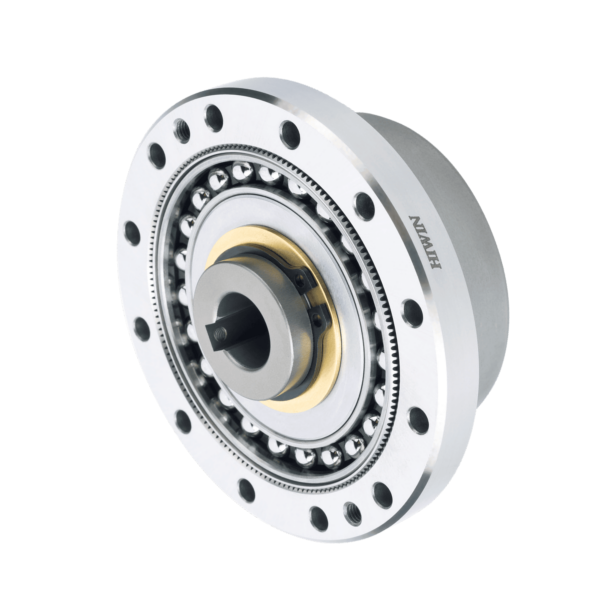

DGC-CO Series

Heavy-Load Cup-Type Strain Wave Gear Component

Heavy load · +30% torque

Choose for 30% more torque from a component set

Sizes

6 models · 14–40

Rated torque

7.0–382 Nm

Configure Size
DGC-PO Series

Heavy-Load Cup-Type Strain Wave Gear Unit

Heavy load · +30% torque Output bearing

Choose for higher-torque drop-in gear units

Sizes

6 models · 14–40

Rated torque

7.0–382 Nm

Configure Size

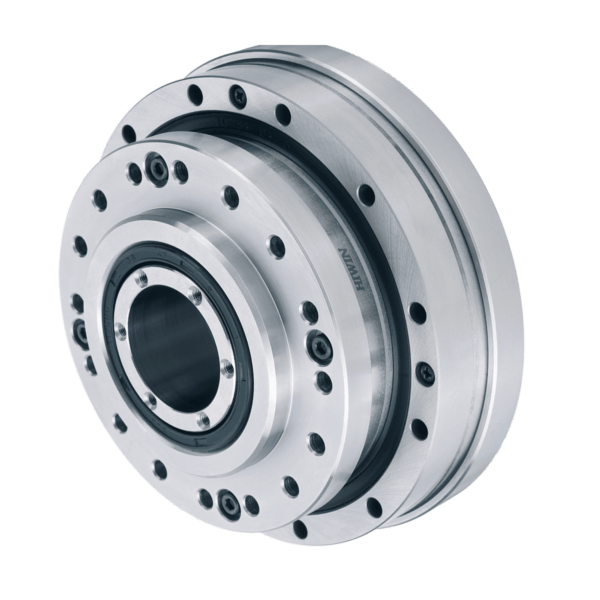

DGH-AH Series

Heavy-Load Sealed Hollow Strain Wave Gear

Heavy load Sealed

Choose for sealed heavy-duty joints with a hollow axis

Sizes

6 models · 14–40

Rated torque

7.0–382 Nm

Configure Size
DGH-AJ Series

Heavy-Load Ring-Type Strain Wave Gear with Solid Shaft

Heavy load Ring type

Choose for heavy ring-type joints with the bearing built in

Sizes

6 models · 14–40

Rated torque

7.0–382 Nm

Configure Size

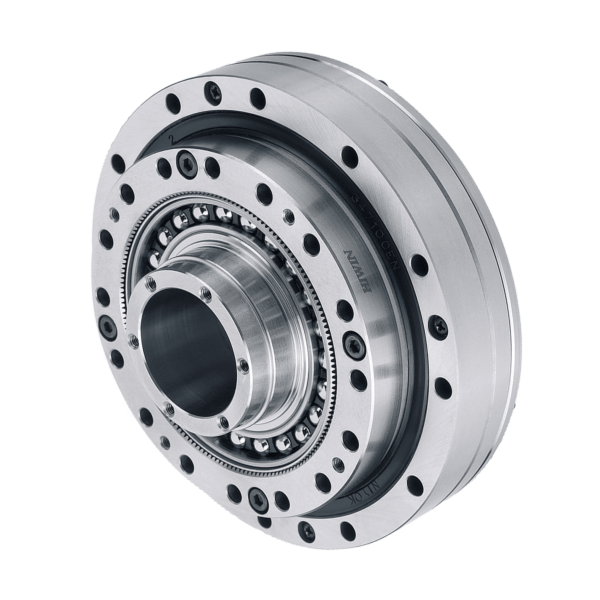

DGH-PH Series

Heavy-Load Hollow-Shaft Strain Wave Gear

Heavy load Hollow shaft

Choose for heavy joints routing services through the gear

Sizes

6 models · 14–40

Rated torque

7.0–382 Nm

Configure Size

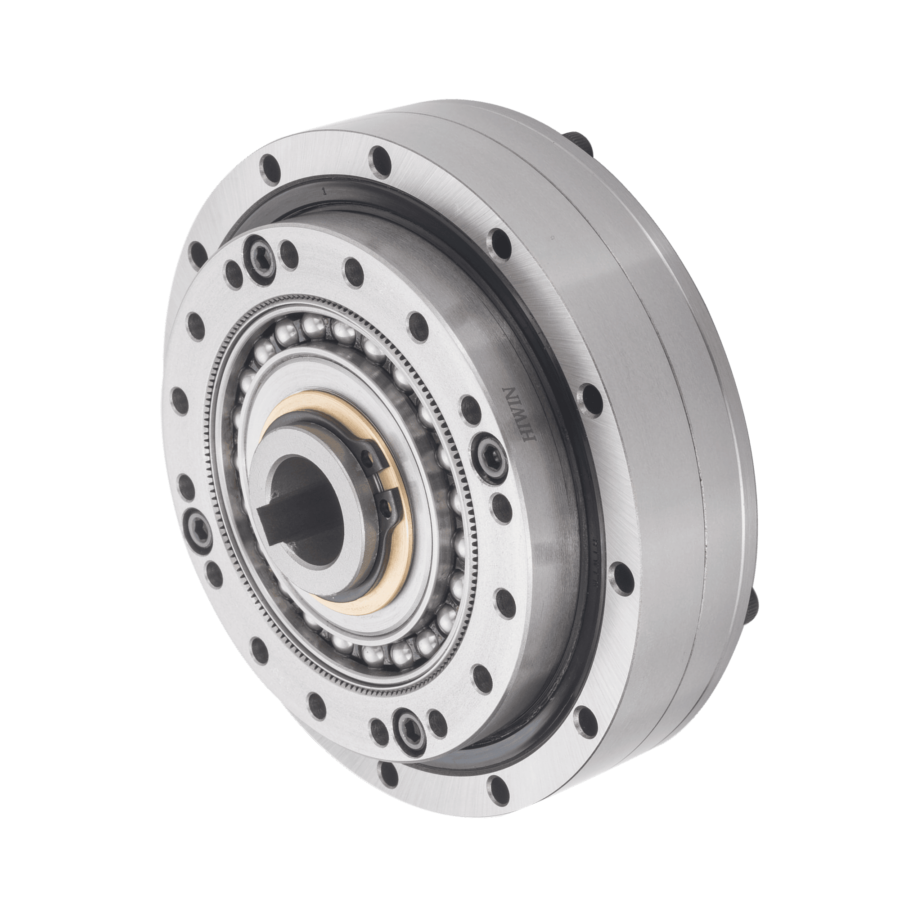

DGH-PO Series

Heavy-Load Strain Wave Gear with Self-Aligning Input (Oldham Combination Type)

Heavy load Self-aligning input

Choose for heavy axes with simplified motor coupling

Sizes

6 models · 14–40

Rated torque

7.0–382 Nm

Configure Size

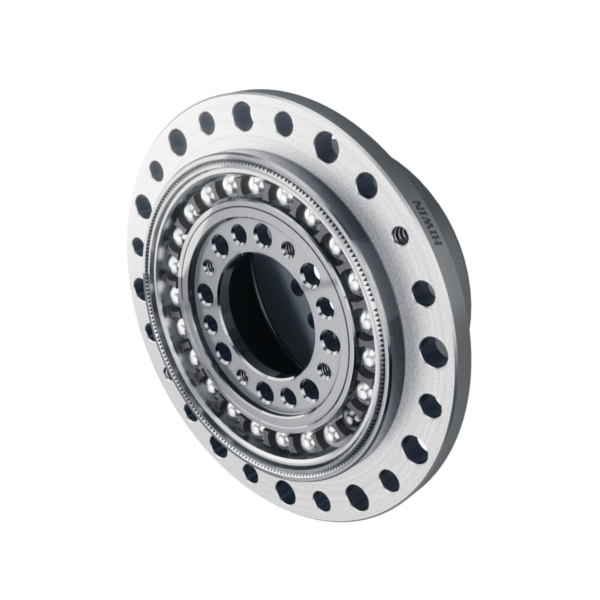

DSC-CE-L Series

Lightweight Cup-Type Strain Wave Gear Component

Lightweight

Choose for weight-critical joints in cobots and end effectors

Sizes

5 models · 14–32

Rated torque

5.4–137 Nm

Configure Size

Not sure which fits? Start with the types ↓

Options & accessories

Options are specified in the model code when ordering.

Reduction ratio choices

Multiple reduction ratios are available under the same model size; input and output direction relationships follow from which element is fixed (catalog section 1-3).
Customized engineering

Custom specifications, dimensions, and interfaces to customer requirements: DATORKER units are routinely tailored to the joint they drive.

Choose your type

Start with the type, then pick the series.

A close-up view of a precision metal mechanical component, likely a harmonic drive or gear assembly, featuring ball bearings, circular plates, and detailed machined surfaces against a white background.

Standard

DSC-AJ-M · DSC-CO · DSC-PO · DSC-PO-M · DSH-AH · DSH-AJ · DSH-PH · DSH-PO

The DSC cup family and DSH sealed-hollow family cover the everyday robot joint: component sets for custom modules, drop-in units with output bearings, and hollow shafts that route cables and air lines through the axis.

A close-up of a circular metal mechanical component with ball bearings, gears, and multiple bolts, commonly used in industrial machinery or robotics. The background is plain white.

Heavy load

DGC-CO · DGC-PO · DGH-AH · DGH-AJ · DGH-PH · DGH-PO

DGC and DGH carry about 30 percent more torque than the standard tiers in the same envelope, for presses, heavy arms, and machine axes where the joint works hardest. The same cup, sealed-hollow, ring, and self-aligning input builds are available.

A close-up of a metal ball bearing with circular openings and multiple layers of ball bearings inside, set against a plain white background.

Lightweight

DSC-CE-L

The DSC-CE-L component set strips mass for weight-critical joints: collaborative robots, end effectors, and moving axes where every gram at the wrist costs payload.

Why HIWIN

The joint that positions the robot.

Low-backlash precision

The flex spline engages the circular spline across many teeth at once: high positional accuracy, stable repeatability and low backlash.

High ratios in one stage

Reduction ratios from a two-tooth difference run from 50 to 160 in a single compact stage, with multiple ratio choices under the same model size.

Rigid, light, and compact

High torsional rigidity and low starting torque in a package light enough for the moving side of the joint.

Customizable by design

HIWIN engineers specifications, ratios, and interfaces to the application, from component sets to sealed drop-in units.

Downloads

Strain Wave Gear Systems Catalog PDF
