TMRW Series
Water-cooled torque motors up to 3,600 N·m with large hollow shaft
Water-cooled Hollow shaft
Electrical Components
Torque Motor Components
Also listed as Torque Motors
Torque motors to 3,600 N·m for machine tools and rotary tables.
4 products
-
-
TM-2 Series
Large hollow shaft, larger torque, cogging torque cut in half
Continuous torque 27–3,375 N·m
Larger torque Low cogging
-

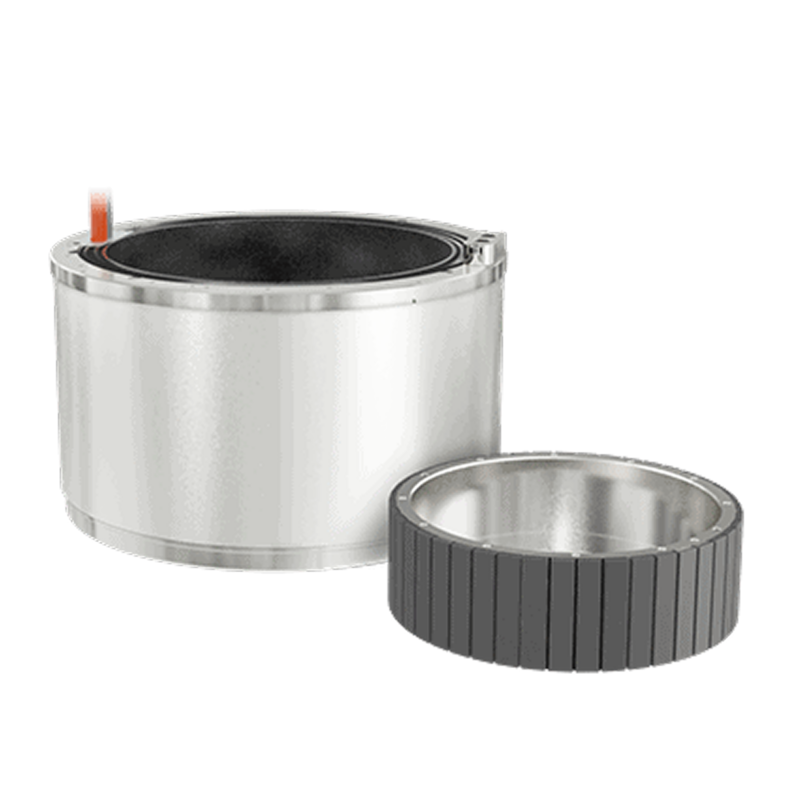

TM-2 (J0) Series
TM-2 with integrated water-cooling jacket and water-tight seal
Cooling jacket Sealed
-

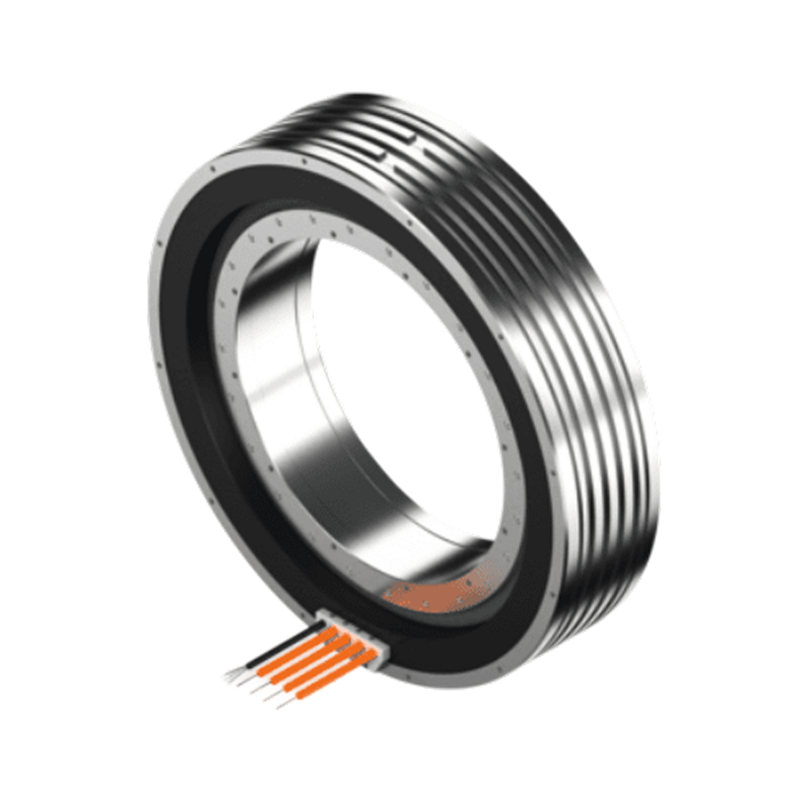

IM-2 Series
Water-cooled torque motors for higher speed in turning and milling combined processing
High speed range Water-cooled
-
TMRW Series
Water-cooled torque motors up to 3,600 N·m with large hollow shaft
Water-cooled Hollow shaft
Choose for gearless torque at machine-tool scale
- Sizes
- to 3,600 N·m
- Continuous torque
- —
-
TM-2 Series
Large hollow shaft, larger torque, cogging torque cut in half
Larger torque Low cogging
Choose for smooth direct-drive rotary axes
- Sizes
- 7 frames · Ø160–565 mm
- Continuous torque
- 27–3,375 N·m
-
TM-2 (J0) Series
TM-2 with integrated water-cooling jacket and water-tight seal
Cooling jacket Sealed
Choose for coolant-exposed rotary axes
- Sizes
- —
- Continuous torque
- —
-
IM-2 Series
Water-cooled torque motors for higher speed in turning and milling combined processing
High speed range Water-cooled
Choose for turning and milling combined processing
- Sizes
- —
- Continuous torque
- —
Why HIWIN
Gearbox torque, direct drive.
To 3,600 newton meters
Water-cooled TMRW motors deliver machine-tool torque with no gearbox in the path: no backlash, no transmission losses.
A hollow shaft that works
Large through-bores route cables, coolant, and media straight down the axis of rotation.
Half the cogging
The TM-2 generation delivers larger torque while cutting cogging torque in half for smoother contouring.
Cooled for sustained duty
Water cooling holds the thermal budget through continuous machining cycles, not just peak bursts.
