Modular Tables and Stages

KK Series Ballscrew Stages

Also listed as Single Axis Stages

Ballscrew and guideway combined in one rigid single-axis stage.

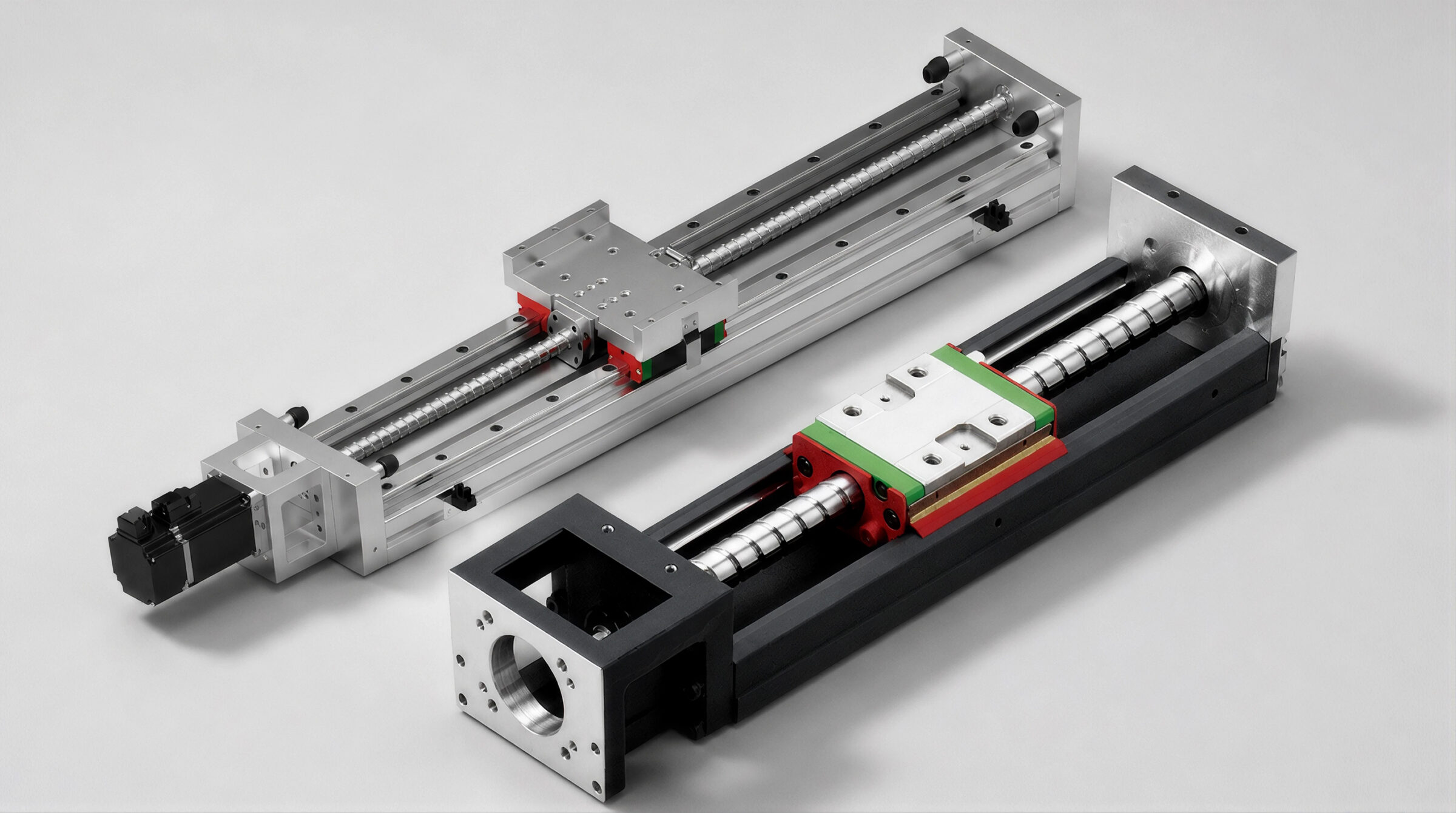

Two linear motion actuator assemblies with mounted ball screws and guides, used in precision machinery, are shown on a plain gray background.

7 products

Not sure which fits? Start with the types ↓

Choose your type

Start with the type, then pick the series.

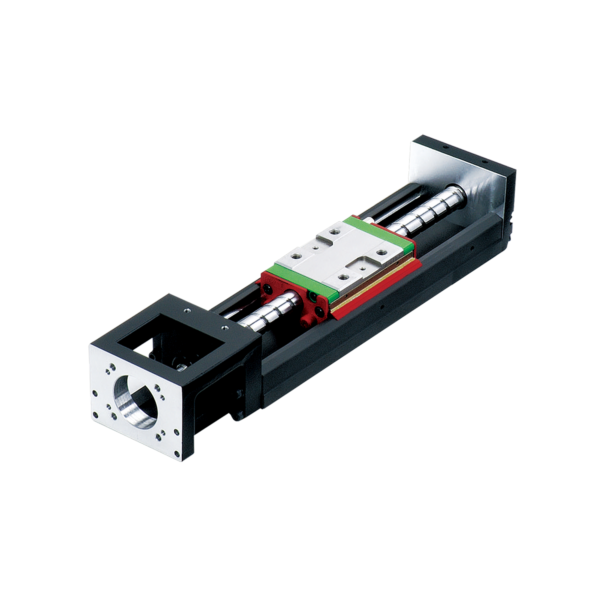

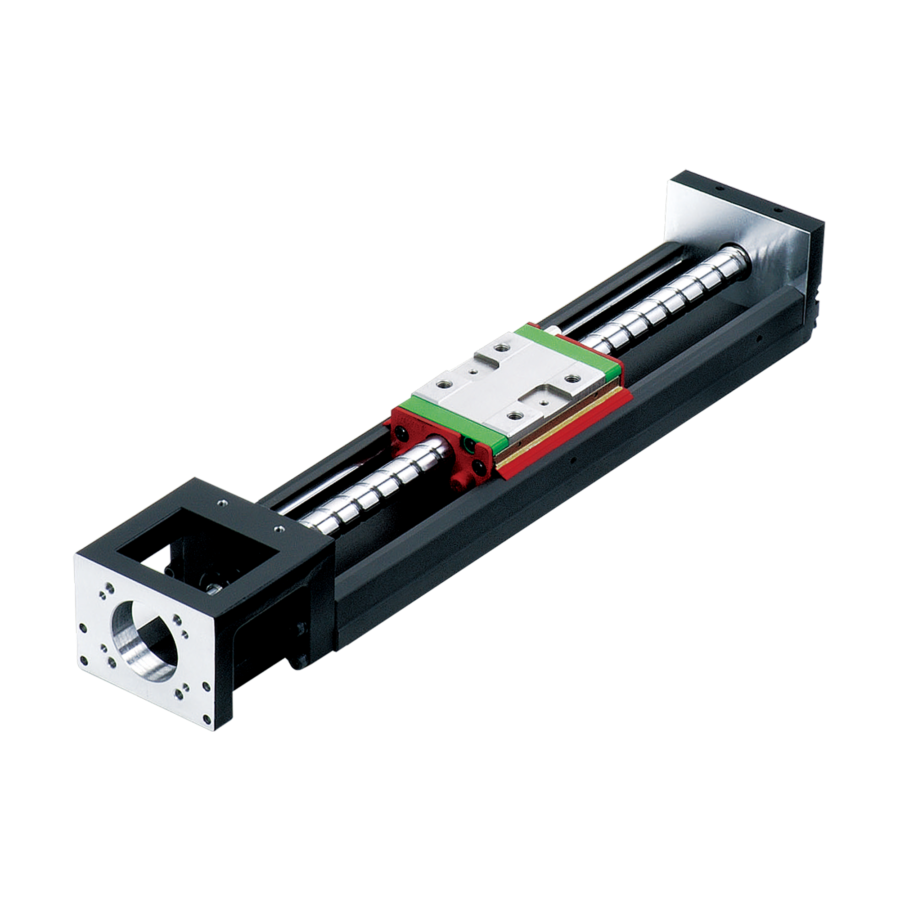

Linear rail actuator with a block carriage mounted on two parallel guide rods, used for precise linear motion in automation and CNC machinery. The unit features metal components and a black and silver finish.

Standard & compact

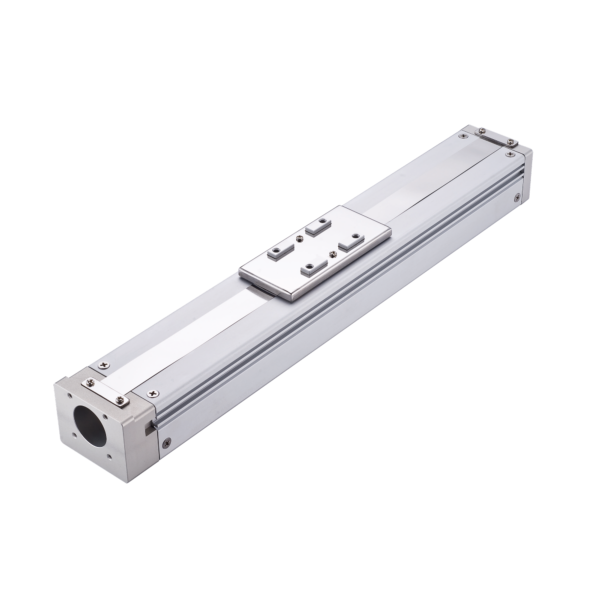

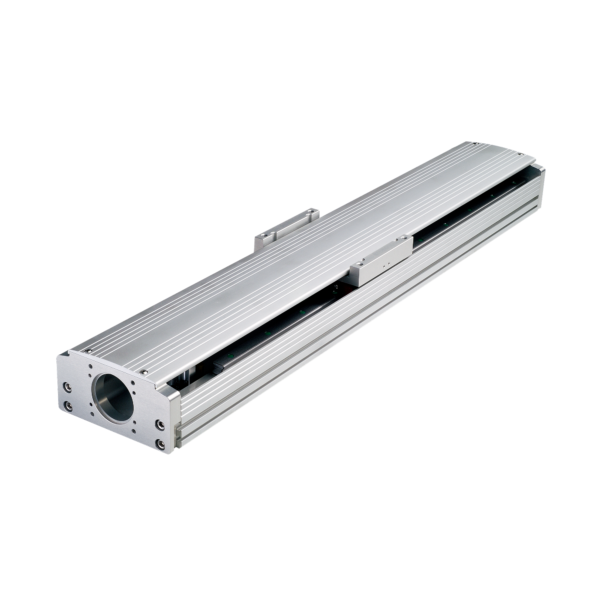

KK · KA · KE

KK is the original integrated stage; KA and KE trim the envelope for instruments and light automation where footprint decides the design.

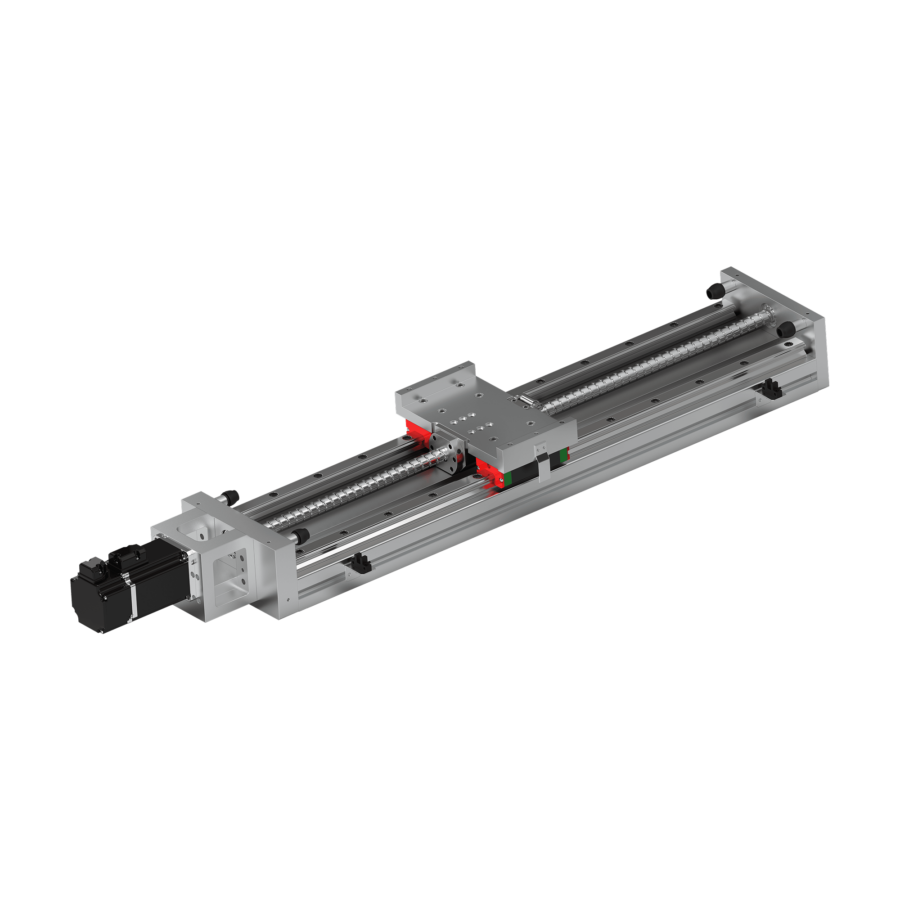

A linear actuator with a stepper motor, metal rails, and a moving platform designed for precise automated linear motion, displayed on a white background.

High-speed & SynchMotion

SK

SK stages run SynchMotion guideways for smooth, quiet travel. SDXK reaches 1 m/s on strokes to 2,500 mm, with recommended payloads up to 64 kg (SDXK20, 20 mm lead, horizontal); KK80 and KK86 with a 20 mm lead run faster, to 1,480 mm/s.

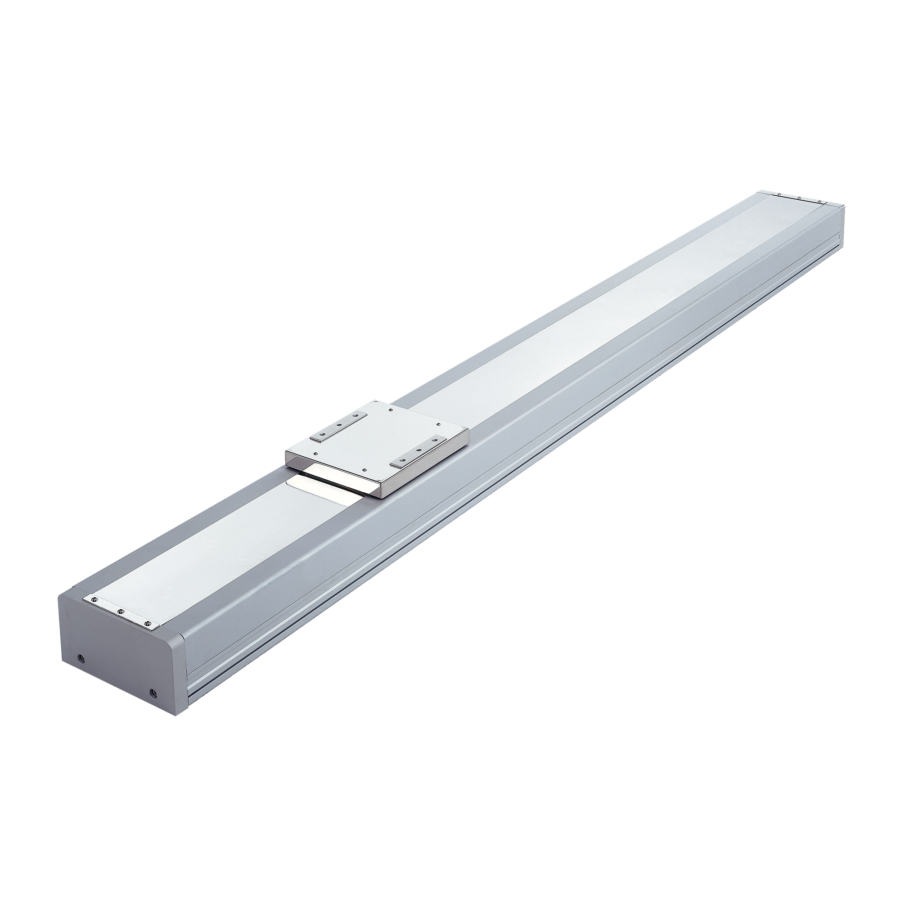

A long, rectangular linear actuator with a metallic finish and a sliding carriage mounted on top, designed for precision movement in industrial automation.

Dust-proof

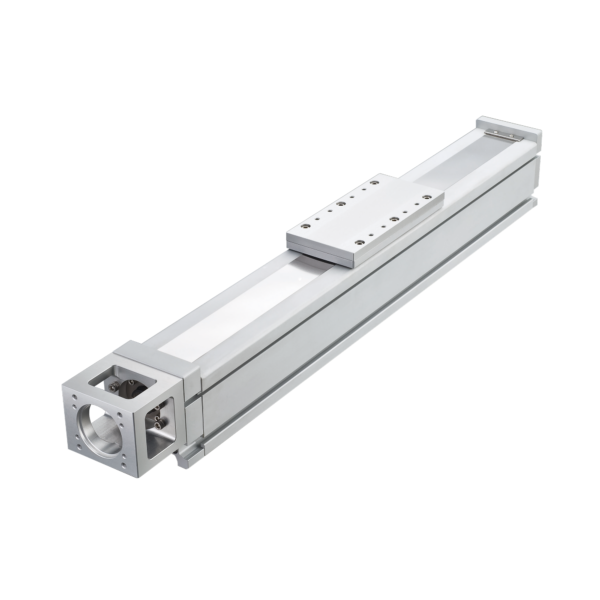

KS · KU

KS and KU close the mechanism behind stainless cover strips. KS is made for use in clean rooms; KU is highly dustproof.

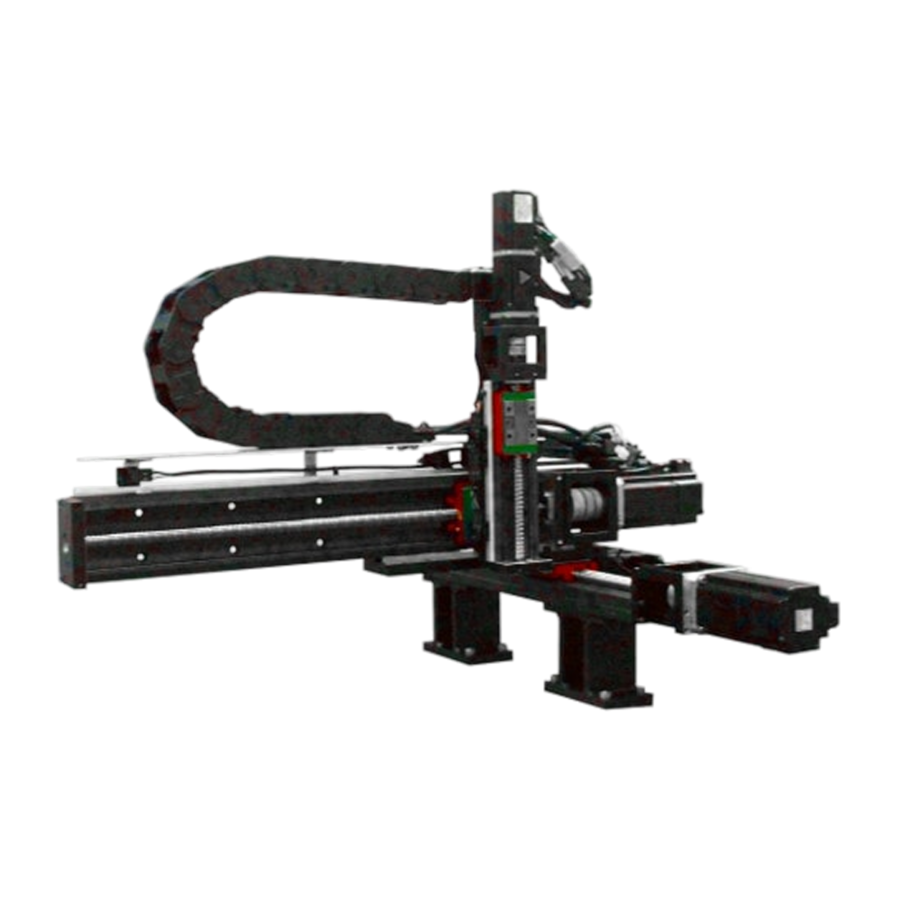

A three-axis industrial robotic arm with a cable carrier, mounted on a metal frame, designed for automated material handling or assembly tasks.

Multi-axis

KM

Pre-configured KM platforms assemble KK axes into cantilever, XY, and gantry systems without custom engineering.

Why HIWIN

One body, two functions.

Ballscrew and guideway, one unit

Drive and guidance share a single machined body: aligned at the factory, stiffer than a bolt-up, and installed in a fraction of the time.

Strokes to 2,500 mm

SDXK stages run strokes up to 2,500 mm at up to 1 m/s, with recommended payloads up to 64 kg (SDXK20, 20 mm lead, horizontal; based on 2.5 m/s² and 10,000 km life).

Dust-proof variants

KS stages are made for use in clean rooms and KU stages are highly dustproof, for semiconductor, LED, and medical equipment.

Multi-axis without engineering

KM platforms pre-configure cantilever, XY, and gantry combinations, so multi-axis motion arrives as a catalog part.

Downloads

A persons hands install a metal bearing onto a long, cylindrical metal rod in a workshop or industrial setting. Shelves and equipment appear blurred in the background.

KK Series Ballscrew Stages

Engineering with KK Series Ballscrew Stages? Talk it through with an application engineer.
