KA Series
KA Series Ballscrew or Belt-Driven Single-Axis Stage
- Type
- Ballscrew or belt stage, linear guideway, aluminum U-base
- Frames
- 7 (KA090 - KA200, 90 - 200 mm wide)
- Drive
- Ballscrew, leads 5 - 25 mm; timing belt on 3 frames
- Strokes
- 50 - 1250 mm ballscrew; 200 - 3000 mm belt

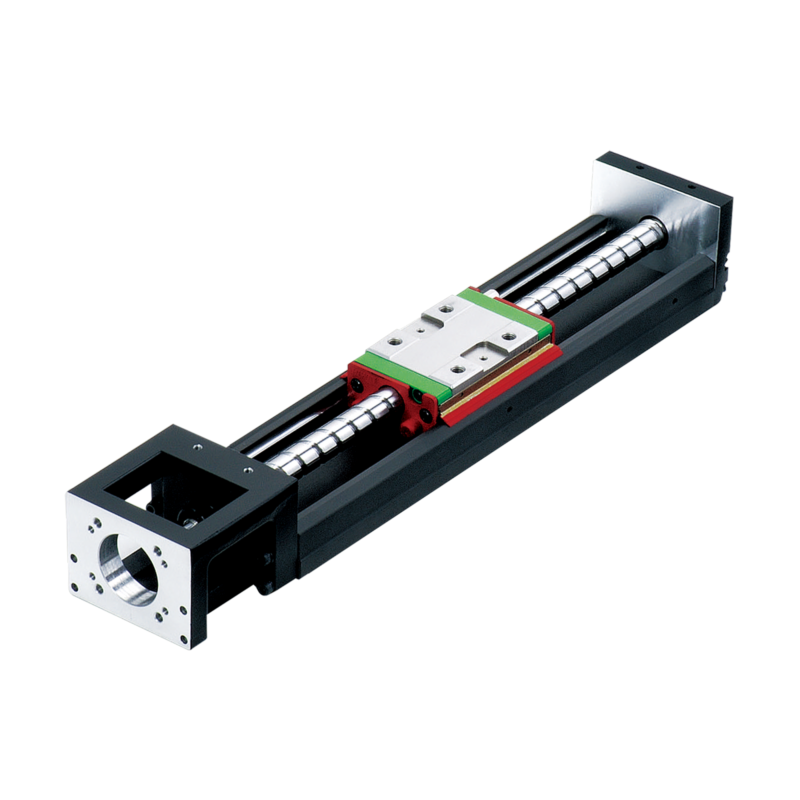

The KA single axis stage is actuated by a motor-driven ballscrew or belt and is guided by a linear guideway. The base is made from lightweight aluminum. It is suitable for semiconductor and industrial automation applications.
-
±0.01 mm
Repeatability, precision grade
-
1800 mm/s
Belt-drive max linear velocity
-
150 kg
Max horizontal load (KA200)
Applications
- Precision industry
- FPD industry
- Conveying equipment
- Inspection and testing equipment
- Assembly equipment
Models
The model number is the base width in millimeters (a KA136 is 136 mm wide), and a B suffix is the timing-belt build of the same frame, for horizontal use only. Where a frame offers several leads, paired values read in lead order: the KA136 carries 95 kg at the 5 mm lead, 75 kg at 10 mm and 40 kg at 20 mm. Belt rows list the pulley perimeter in place of a lead.
| Model | Motor | Lead / belt perimeter (mm) | Effective strokes (mm) | Max horizontal load (kg) | Configure |
|---|---|---|---|---|---|
| KA090 | 100 W AC | 5 / 10 | 50–600 | 24 / 12 | Configure ↗ |
| KA100 | 100 W AC | 5 / 10 / 20 | 100–1050 | 50 / 32 / 20 | Configure ↗ |
| KA120 | 100 W AC | 5 / 10 / 20 | 100–1050 | 50 / 32 / 20 | Configure ↗ |
| KA136 | 200 W AC | 5 / 10 / 20 | 100–1050 | 95 / 75 / 40 | Configure ↗ |
| KA150 | 200 W AC | 10 / 20 | 150–1250 | 80 / 40 | Configure ↗ |
| KA170 | 400 W AC | 10 / 20 | 150–1250 | 125 / 75 | Configure ↗ |
| KA200 | 750 W AC | 10 / 25 | 150–1250 | 150 / 85 | Configure ↗ |
| KA100B | 100 W AC | 84 (belt) | 200–3000 | 7.5 | Configure ↗ |
| KA136B | 200 W AC | 120 (belt) | 200–3000 | 15 | Configure ↗ |
| KA170B | 400 W AC | 120 (belt) | 200–3000 | 30 | Configure ↗ |
Part numbers & options
How a part number reads
KA100 B 5 P E - 500 A E F0 E U S1 M501 (spaces between decoded positions)
- KA100
- Model — KA plus nominal base width · KA090 · KA100 · KA120 · KA136 · KA150 · KA170 · KA200
- B
- Drive type — B timing belt · D double slider · None ballscrew
- 5
- Lead (mm) — 5, 10 KA090 · 5, 10, 20 KA100-KA136 · 10, 20 KA150, KA170 · 10, 25 KA200 · belt stages print the pulley perimeter (84 KA100B · 120 KA136B, KA170B)
- P
- Precision grade — C normal ±0.02 mm · P precision ±0.01 mm
- E
- Ballscrew special order — E special order · None normal type
- 500
- Effective stroke (mm) — 50-600 KA090 · 100-1050 KA100-KA136 · 150-1250 KA150-KA200 · 200-3000 belt
- A
- Slider type — A standard · E slider special order
- F0
- Motor flange — F0 direct · F1-F6 adaptor flanges · FD bottom · FI internal · FL left · FR right
- E
- Flange special order — E special order · None normal type
- U
- Aluminum cover — U without cover · None standard cover
- S1
- Limit switch — S1 OMRON SX671 · S2 OMRON SX674 · S3 Panasonic GX-F12A · S4 Panasonic GX-F12A-P · SE sensor special order · None without sensor
- M501
- Motor — M□/K□ HIWIN servo (ref. motor appendix) · M customer specified · None without motor
The configurator assembles this number for you, with drawings and 3D CAD. Configure ↗
Drive types
One frame, two transmissions; the drive letter sits after the width in the order code.
- None Ballscrew — Standard on every frame; leads 5-25 mm
- B Timing belt — KA100, KA136, KA170; horizontal use, up to 1800 mm/s and 3000 mm strokes
- D Double slider — Second slider on the same base
Precision grades
Round-trip repeatability grades; KA products do not state absolute positional accuracy.
- C Normal — ±0.02 mm repeatability
- P Precision — ±0.01 mm repeatability
Motor connections
Direct connection is standard; flange availability follows the frame.
- F0 Direct mount — Standard on ballscrew frames
- F1-F6 Adaptor flanges — KA090-KA120 to F1, KA136 and KA150 to F6, KA170 to F4, KA200 to F2
- FD Bottom motor — Belt-pulley connection under the base
- FI Internal motor — Coupling connection folded inside the base
- FL / FR Left / right motor — Belt-pulley connection beside the base; the only connections on belt stages
Limit switches
Factory-fitted sensor options; leave the position empty for none.
- S1 OMRON SX671
- S2 OMRON SX674
- S3 Panasonic GX-F12A
- S4 Panasonic GX-F12A-P
- SE Sensor special order
- None Without sensor
Motors
Motor specifications are tabled in the catalog's servo appendix (p. 167).
- M□/K□ HIWIN AC servo — 100 W KA090-KA120 · 200 W KA136, KA150 · 400 W KA170 · 750 W KA200
- M Customer specified — Inform HIWIN in advance when fitting your own motor
- None Without motor
Aluminum cover
- None Standard cover — All standard KA models ship with the aluminum protective cover
- U Without cover
