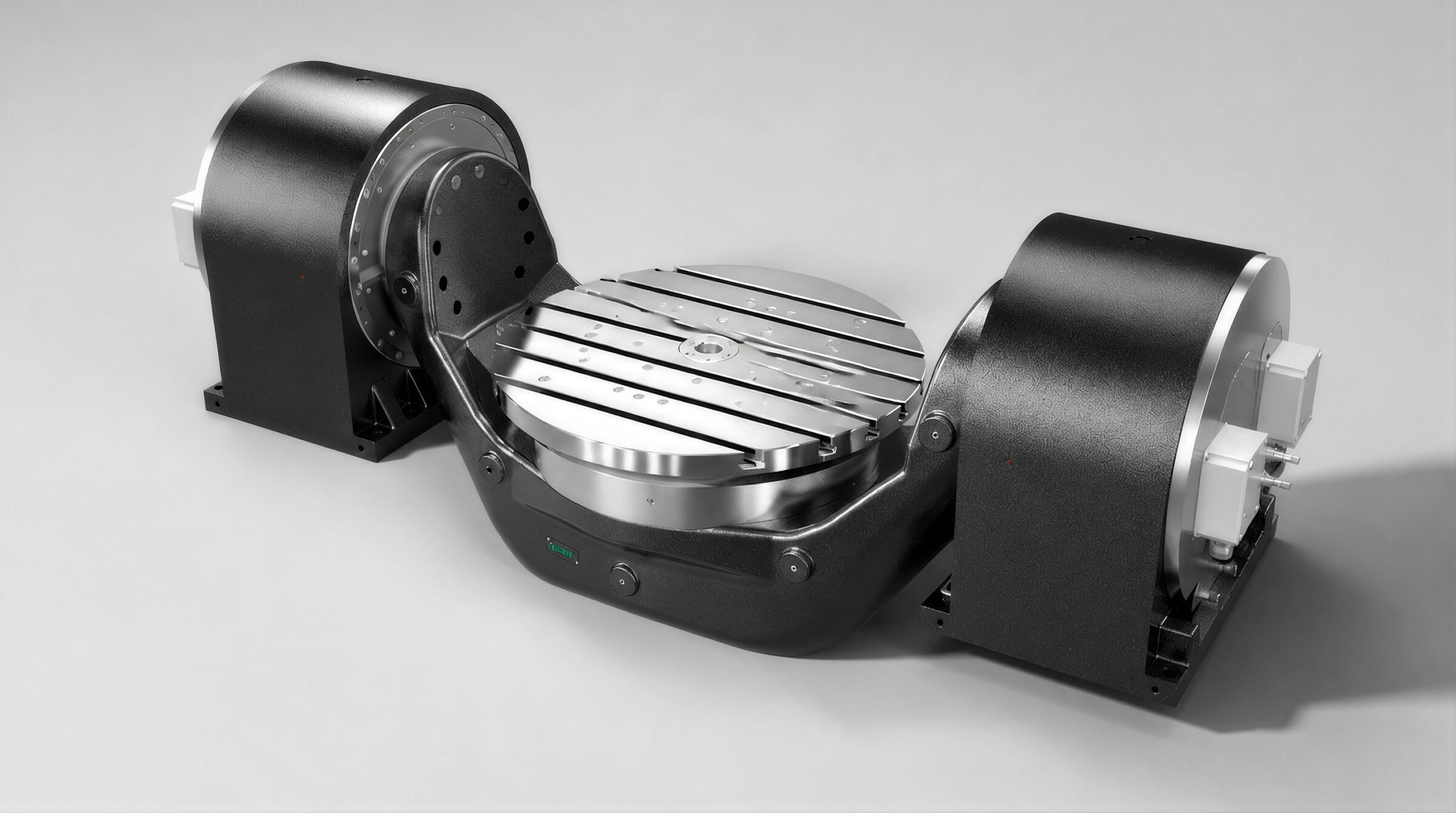

RAB Series
Symmetrical trunnion table with air brake: 3+2, 4+1, and 5-axis machining
Allowable load 50–1,200 kg
Trunnion Air brake
Modular Tables and Stages
Rotary Tables
Also listed as Torque Motor Rotary Tables
Torque-motor tables that upgrade machining centers to 5-axis work.
4 products
-

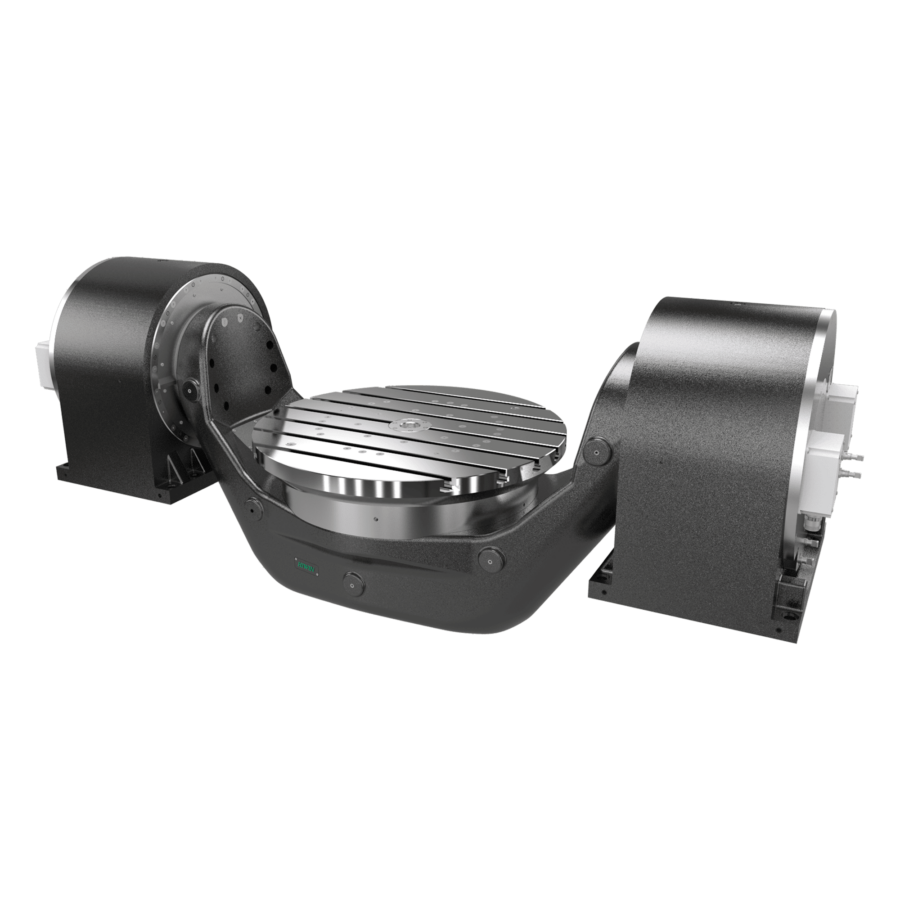

RAB Series
Symmetrical trunnion table with air brake: 3+2, 4+1, and 5-axis machining
Trunnion Air brake
Choose for 3+2 and full 5-axis machining
- Sizes
- Ø200–800 mm table
- Allowable load
- 50–1,200 kg
-

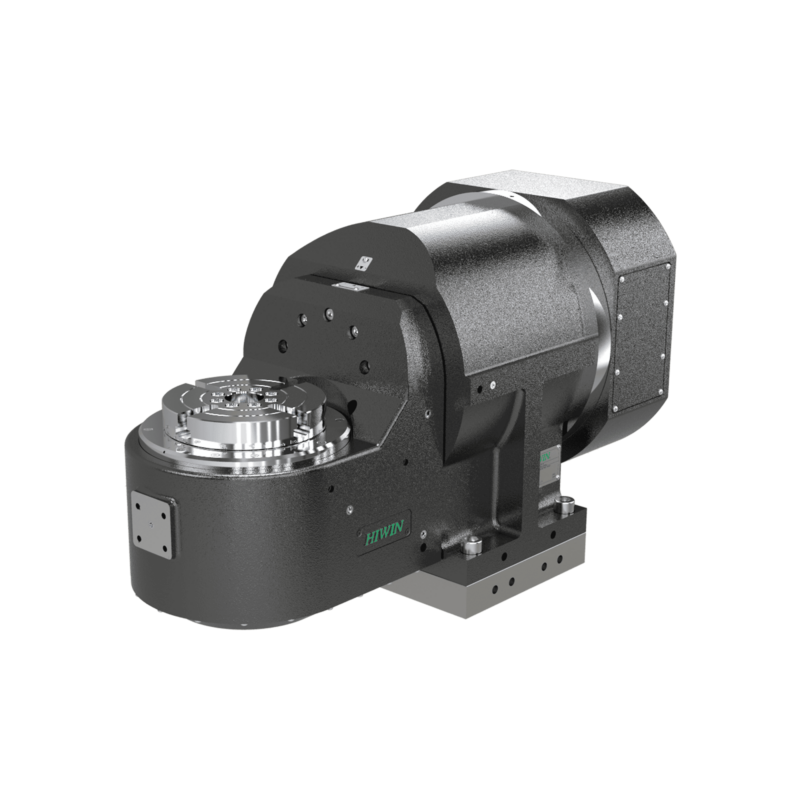

RAS Series
Compact single-arm table for space-limited 5-axis designs
Single-arm Compact
Choose for 5-axis reach in space-limited machines
- Sizes
- Allowable load
-

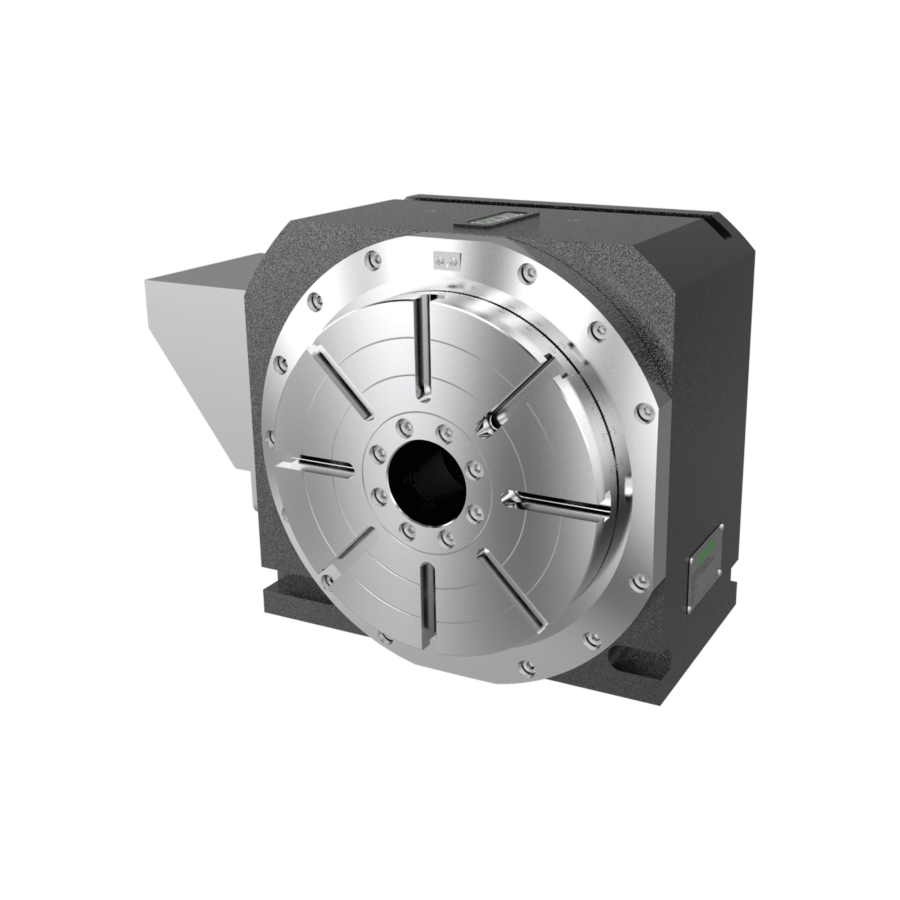

RCV Series
Vertical table: the 3+1-axis upgrade for processing machines
Vertical
Choose for upgrading 3-axis machines to 3+1
- Sizes
- —
- Allowable load
- —
-

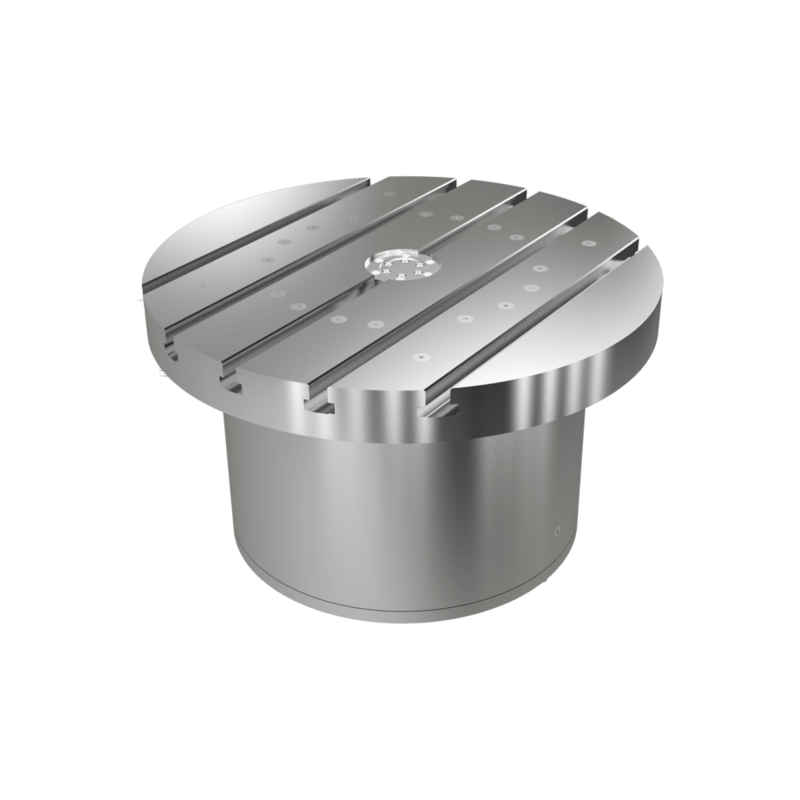

RCH Series
Horizontal table for milling, turning, and grinding integration
Horizontal
Choose for milling, turning, and grinding integration
- Sizes
- Allowable load
Not sure which fits? Start with the types ↓
Choose your type
Start with the type, then pick the series.
5-axis tables
RAB · RAS
RAB symmetrical trunnion tables (with built-in air brake) and RAS single-arm tables add the tilting rotary pair that turns a 3-axis machining center into a simultaneous 5-axis machine.
3+1-axis tables
RCV · RCH
RCV vertical and RCH horizontal single-axis tables are the straightforward upgrade path: one torque-motor axis of indexing or continuous rotation on an existing machine.
Why HIWIN
Five axes without the worm gear.
Torque motor direct drive
No worm gear in the path means no backlash to compensate and no wear item to re-mesh: accuracy holds over the table’s life.
A table for each upgrade
Trunnion and single-arm tables deliver full 5-axis work; vertical and horizontal singles handle 3+1 and 4+1 configurations.
Braked and encoded
Built-in air brakes hold position under cutting loads while precision encoders close the loop on every index.
Mill, turn, grind
Rigid bearings and sustained torque support milling, turning, and grinding on the same table.
Rotary Tables
