Electrical Components

AC Servo Motors & Drives

Also listed as AC Servo Motors, Drives & Controllers

Closed-loop servo: EM1 motors, E1 and E2 drives, HIMC motion control.

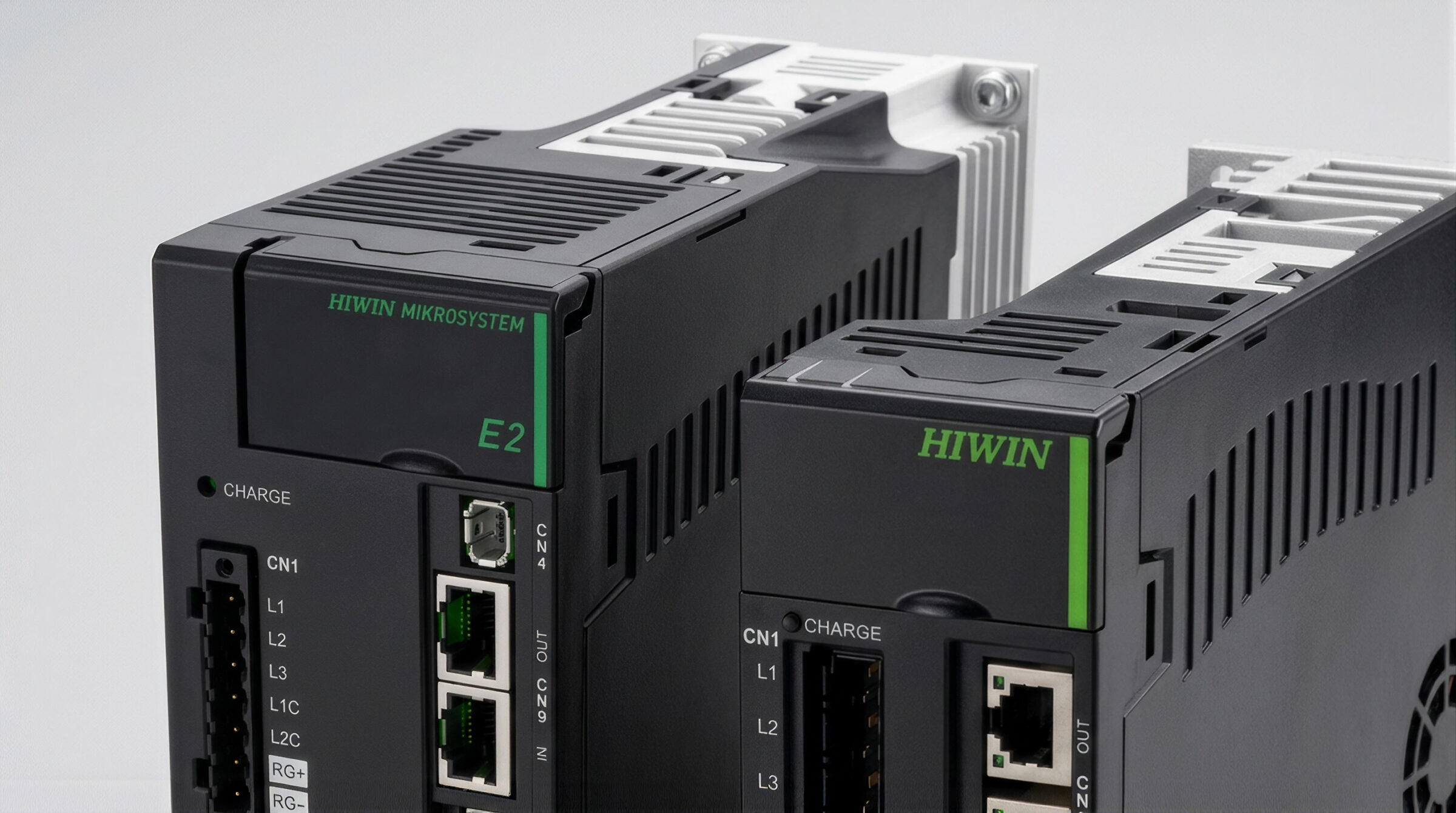

Close-up of two black HIWIN electronic devices with green labels, network ports, and connectors, positioned side by side against a plain background.

5 products

Not sure which fits? Start with the types ↓

Choose your type

Start with the type, then pick the series.

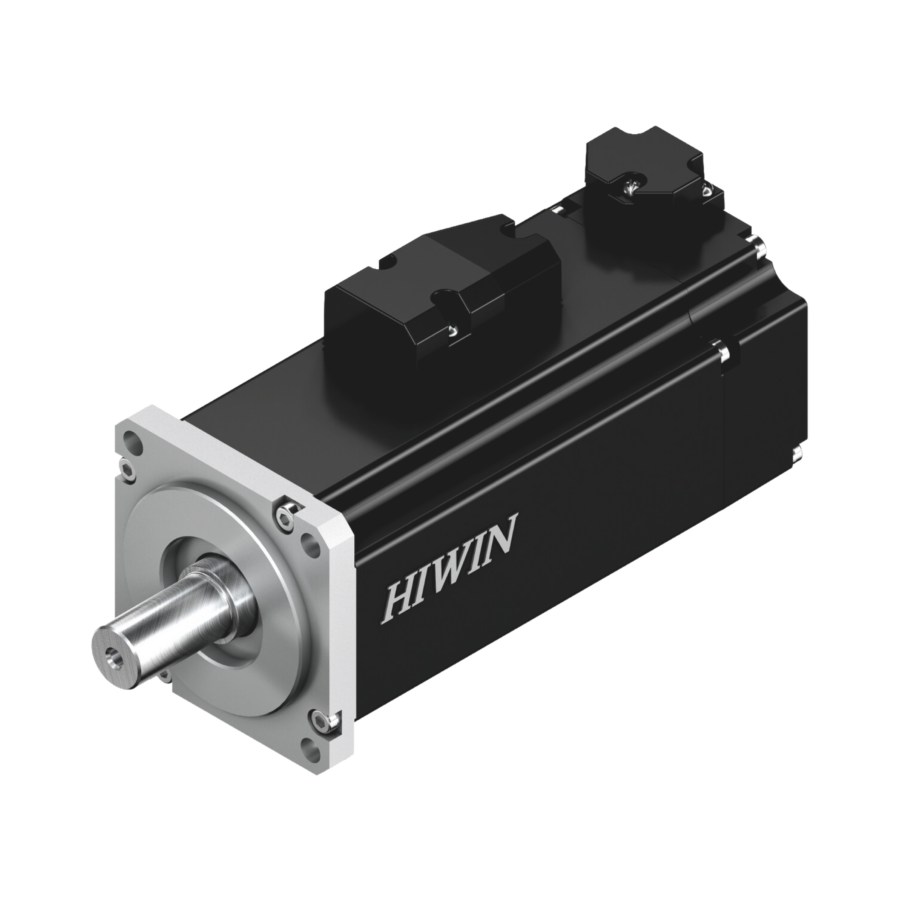

A black and silver HIWIN servo motor with a cylindrical shaft, visible mounting holes, and electrical connectors on top, shown against a plain white background.

Servo motors

EM1

EM1 closed-loop motors span 50 W to 2 kW with 17- or 23-bit encoders, IP67 protection from 50 W to 750 W and IP65 from 1 kW to 2 kW: the matched rotary muscle for HIWIN drives and mechanical platforms.

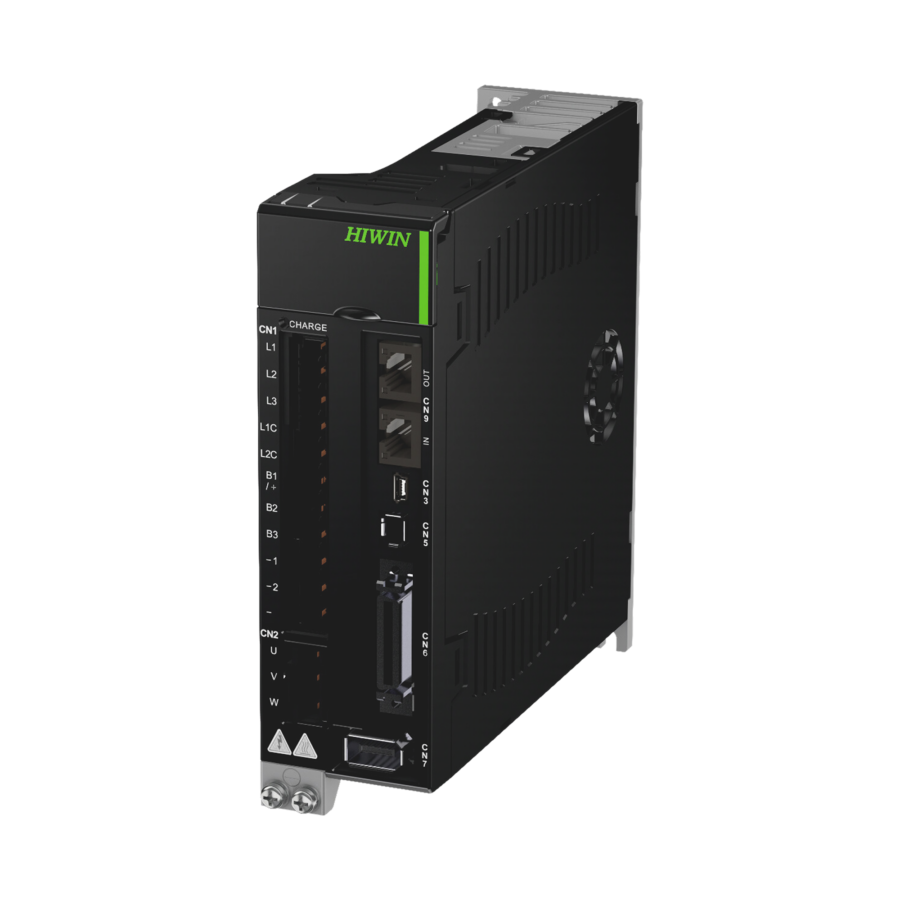

A black HIWIN industrial control device with indicator lights, ports, and green branding, mounted vertically on a light background.

Drives & controllers

Servo Drive E1 · Servo Drive E2 · Servo Drive D1 · HIMC Motion Controller

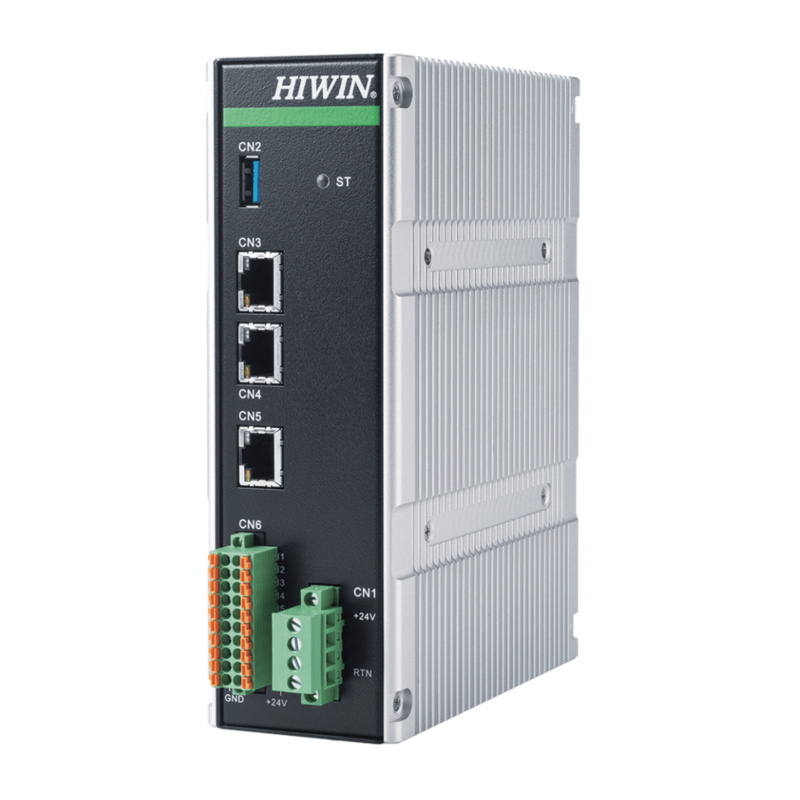

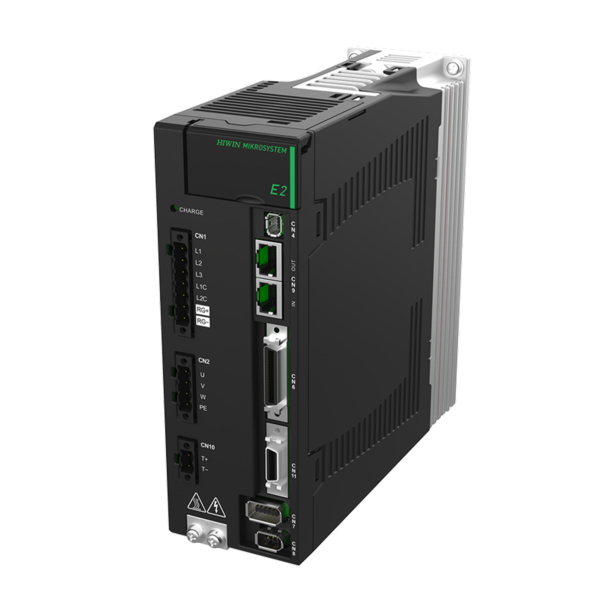

E1 and E2 drives reach 3.2 kHz speed response with built-in STO. E1 drives servo, linear, direct-drive and torque motors; E2 drives servo, direct-drive and linear motors. D1 is the proven general-purpose platform, and the HIMC motion controller synchronizes up to 16 axes on a 250 microsecond cycle.

Why HIWIN

Matched electronics for HIWIN mechanics.

One vendor, closed loop

Motor, drive, controller, and the mechanics they move come from one engineering source, so tuning starts matched instead of improvised.

3.2 kHz response, STO built in

E-series drives answer at 3.2 kHz with safe torque off on board, cutting external safety wiring from the panel.

Feedback at 23 bits

Encoder options to 23-bit resolution keep positioning tight through the whole 50 W to 2 kW motor range.

Sixteen axes in sync

The HIMC controller coordinates up to 16 axes on a 250 microsecond cycle for gantries, presses, and multi-axis machines.

Downloads

A persons hands install a metal bearing onto a long, cylindrical metal rod in a workshop or industrial setting. Shelves and equipment appear blurred in the background.

AC Servo Motors & Drives

Engineering with AC Servo Motors & Drives? Talk it through with an application engineer.

Request a quote Talk to an engineer
