KS Series
KS Series Dust-Proof Single-Axis Stage
- Type
- Dust-proof stage, stainless cover strip, ballscrew or belt driven
- Frames
- 6 (KS090 - KS180)
- Drive
- C7 ballscrew, leads 5 - 20 mm, or timing belt; 100 - 400 W motor
- Strokes
- 50 - 1,250 mm ballscrew, 200 - 3,000 mm belt

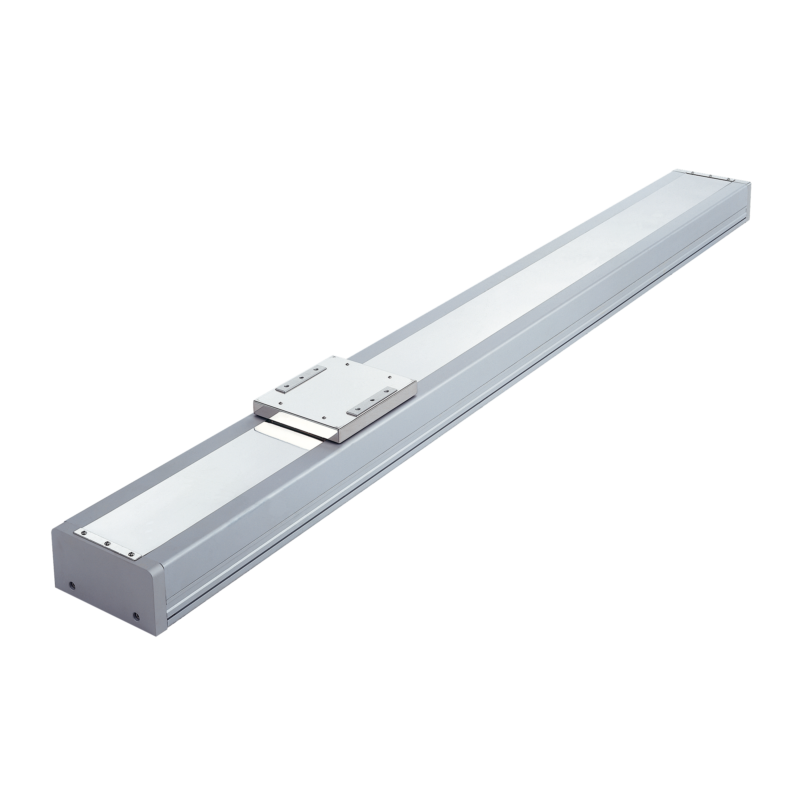

The KS single axis stage is actuated by a motor-driven ballscrew or belt equipped with a stainless steel cover strip to prevent particles from entering or exiting. Due to the dust-proof design, this type of single axis stage is ideal for the manufacturing of semiconductor equipment, LED examination equipment, medical and inspection equipment, etc.
-
Clean room
For use in clean room; dust-proof stainless cover
-
±0.02 mm
Repeatability, ballscrew models
-
1,800 mm/s
Max linear speed, belt-driven models
Applications
- FPD industry and glass transfer
- Semiconductor
- Medical applications
- Inspection and testing equipment
Models
The suffix is the motor position: FI tucks the motor inside the frame line, FL and FR fold it left or right, and the KS090 mounts it direct with no suffix. B models swap the C7 (3,000 rpm) ballscrew for a timing belt: faster and longer but ±0.1 mm repeatability and horizontal use only, versus ±0.02 mm on every ballscrew model.
| Model | Drive and mount | Leads (mm) | Max horizontal load (kg) | Effective strokes (mm) | Configure |
|---|---|---|---|---|---|
| KS090 | Ballscrew, direct mount | 5 / 10 | 24 / 12 | 50 - 600 | Configure ↗ |
| KS100-FI | Ballscrew, internal mount | 5 / 10 / 20 | 8 / 6 / 3.5 | 200 - 800 | Configure ↗ |
| KS100-FL | Ballscrew, motor left | 5 / 10 / 20 | 8 / 6 / 3.5 | 200 - 800 | Configure ↗ |
| KS100-FR | Ballscrew, motor right | 5 / 10 / 20 | 8 / 6 / 3.5 | 200 - 800 | Configure ↗ |
| KS100B-FL | Timing belt, motor left | Belt | 3 | 200 - 3,000 | Configure ↗ |
| KS100B-FR | Timing belt, motor right | Belt | 3 | 200 - 3,000 | Configure ↗ |
| KS120 | Ballscrew, internal mount | 5 / 10 / 20 | 50 / 32 / 20 | 100 - 1,050 | Configure ↗ |
| KS140-FI | Ballscrew, internal mount | 10 / 20 | 75 / 35 | 200 - 1,100 | Configure ↗ |
| KS140-FL | Ballscrew, motor left | 10 / 20 | 75 / 35 | 200 - 1,100 | Configure ↗ |
| KS140-FR | Ballscrew, motor right | 10 / 20 | 75 / 35 | 200 - 1,100 | Configure ↗ |
| KS140B-FL | Timing belt, motor left | Belt | 15 | 200 - 3,000 | Configure ↗ |
| KS140B-FR | Timing belt, motor right | Belt | 15 | 200 - 3,000 | Configure ↗ |
| KS150-FI | Ballscrew, internal mount | 10 / 20 | 80 / 40 | 150 - 1,250 | Configure ↗ |
| KS180-FI | Ballscrew, internal mount | 10 / 20 | 110 / 50 | 200 - 1,200 | Configure ↗ |
| KS180-FL | Ballscrew, motor left | 10 / 20 | 110 / 50 | 200 - 1,200 | Configure ↗ |
| KS180-FR | Ballscrew, motor right | 10 / 20 | 110 / 50 | 200 - 1,200 | Configure ↗ |
| KS180B-FL | Timing belt, motor left | Belt | 30 | 200 - 3,000 | Configure ↗ |
| KS180B-FR | Timing belt, motor right | Belt | 30 | 200 - 3,000 | Configure ↗ |
Part numbers & options
How a part number reads
KS120 -20 P -1050 A FI S1 M101 (KS120, 20 mm lead, precision grade, 1,050 mm effective stroke, standard slider, internal motor mount, OMRON SX671 limit switch, 100 W motor)
- KS120
- Model — KS090 · KS100 · KS120 · KS140 · KS150 · KS180
- B
- Drive — none ballscrew · B timing belt (belt orders a pulley perimeter code in place of the lead: -84 KS100B · -120 KS140B/KS180B)
- 20
- Ballscrew lead (mm) — 5 · 10 KS090 · 5 · 10 · 20 KS100/KS120 · 10 · 20 KS140/KS150/KS180
- P
- Precision grade — P precision · C normal (belt models C only)
- -1050
- Effective stroke (mm) — 50–600 KS090 · 200–800 KS100 · 100–1,050 KS120 · 200–1,100 KS140 · 150–1,250 KS150 · 200–1,200 KS180 · 200–3,000 belt
- A
- Slider type — A standard
- FI
- Motor flange — F0 direct · F1 (KS090) · FI internal · FL left · FR right, per the frame's flange list
- S1
- Limit switch — S1 OMRON SX671 · S2 OMRON SX674 · S3 Panasonic GX-F12A · S4 Panasonic GX-F12A-P · none no limit switch
- M101
- Motor — M05□/K05□ · M10□/K10□ (KS090–KS120), M20□/K20□ · M40□/K40□ (KS140–KS180) · M customer specified · none without motor
The configurator assembles this number for you, with drawings and 3D CAD. Configure ↗
Precision grades
Every ballscrew frame orders in either grade; repeatability is ±0.02 mm.
- C Normal — The only grade on belt-driven models (±0.1 mm)
- P Precision — For the accuracy-critical end of the range
Motor mounts
Which mounts a frame takes depends on its flange list: the KS090 is direct only, the KS150 internal only, and the belt models fold left or right.
- F0 / F1 Direct mount — KS090; F0 or F1 follows the motor brand
- FI Internal — Motor tucked inside the frame line: KS100-KS180 ballscrew models
- FL / FR Folded left / right — Shortest package; the belt models' only mounts
Limit switches
- S1 OMRON SX671
- S2 OMRON SX674
- S3 Panasonic GX-F12A
- S4 Panasonic GX-F12A-P
- None No limit switch — Wire your own sensors
Motor
The 6.5 flange table matches HIWIN Mikrosystem, Mitsubishi, Panasonic and Yaskawa servo motors and drives to each frame.
- M□/K□ HIWIN-fitted motor — M05□/K05□ and M10□/K10□ on KS090-KS120; M20□/K20□ and M40□/K40□ on KS140-KS180
- M Customer specified — Inform HIWIN in advance when installing your own motor
- None Without motor
