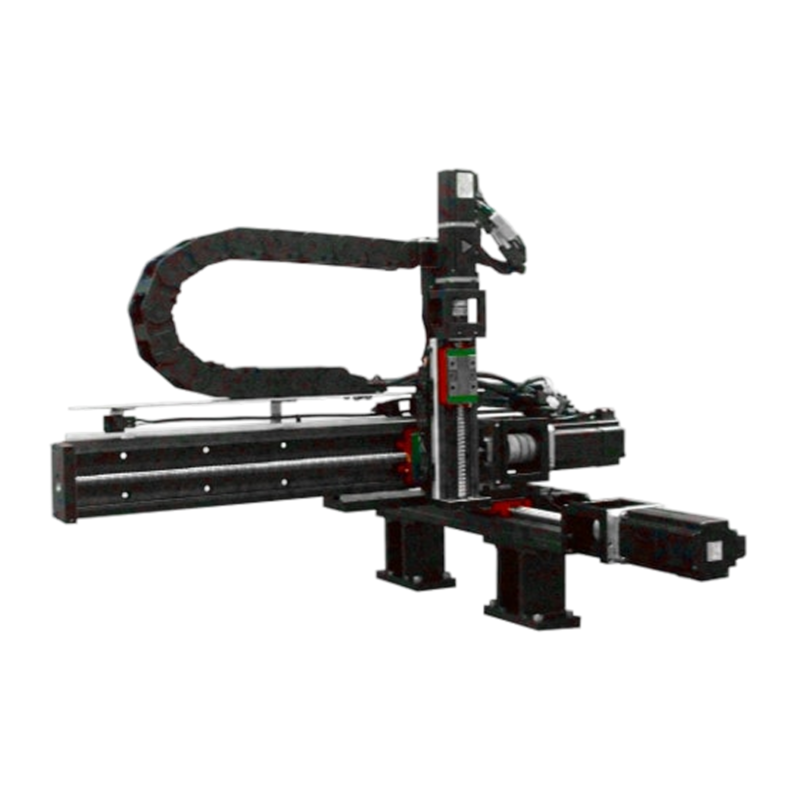

A three-axis industrial robotic arm with a cable carrier, mounted on a metal frame, designed for automated material handling or assembly tasks.

KM Series

KM Series Multi-Axis Cartesian Systems (Cartesian Robot KK Series)

Type
Pre-configured multi-axis system (KK stages)
Configurations
21 standard models, 8 frame types (T1 - T8)
Axes
2 (XY, YZ, XZ) or 3 (XYZ)
Payload
2 [kg] - 40 [kg]

Start customizing your product with our configurator

Hiwin's KM series is a pre-designed, and configurable, multi-axis system using Hiwin's premiere ballscrew driven KK stages. Configurations include cantilever (cartesian), XY cross table, single driven and dual driven gantry. Hiwin provides additional value through time savings for designing, sourcing, and machining with pre-made brackets and configurations allowing you to focus your resources on the process rather than the motion products. The KM systems can be sold as assemblies or kits including brackets with additional items such as motors, cables, cable chains, servo drives, and couplings.

KM systems are configured from KK stages; for a single axis, start from the KK itself. View KK Series →

  • 21

    Standard configurations in the catalog, across 8 frame types

  • ±0.005 mm

    Repeatability per axis on KK50 to KK86 stages (±0.01 mm on KK100)

  • 40 kg

    Max payload (HRCR-KK1086XX-T1 cantilever, shortest stroke)

Applications

  • Screw fastening
  • Dispensing
  • Loading and unloading
  • Material transfer
  • Assembly
  • Welding
  • Packaging
  • Inspection
  • Cutting

Configurations

The model code strings the X, Y and Z stage sizes ahead of the frame type: 10 = KK100, 86 = KK86, 60 = KK60, 50 = KK50, and XX marks an axis the configuration does not use. Where the payload column shows a range, it is the catalog's max load capacity from the longest standard stroke to the shortest; single values hold across all standard strokes.

Model number Type Axes Axis stages Max. payload (kg) Configure
HRCR-KK8660XX-T1 Cantilever 2 / XY X KK86D · Y KK60D 10–25 Configure ↗
HRCR-KK1086XX-T1 Cantilever 2 / XY X KK100 · Y KK86D 12–40 Configure ↗
HRCR-KK8660XX-T2 Cross (horizontal) 2 / XY X KK86D · Y KK60D 10–25 Configure ↗
HRCR-KKXX8660-T2 Cross (wall-mounted) 2 / YZ Y KK86D · Z KK60D 15 Configure ↗
HRCR-KK1086XX-T2 Cross (horizontal) 2 / XY X KK100 · Y KK86D 9–35 Configure ↗
HRCR-KKXX1086-T2 Cross (wall-mounted) 2 / YZ Y KK100 · Z KK86D 30 Configure ↗
HRCR-KK8660XX-T3 Moving arm (horizontal) 2 / XY X KK86D · Y KK60D 2–11 Configure ↗
HRCR-KKXX8660-T3 Moving arm (wall-mounted) 2 / YZ Y KK86D · Z KK60D 9–12 Configure ↗
HRCR-KKXX6086-T3 Moving arm (vertical) 2 / ZY Y KK60D · Z KK86D 9–13 Configure ↗
HRCR-KK1086XX-T3 Moving arm (horizontal) 2 / XY X KK100 · Y KK86D 7–25 Configure ↗
HRCR-KKXX1086-T3 Moving arm (wall-mounted) 2 / YZ Y KK100 · Z KK86D 21–25 Configure ↗
HRCR-KKXX8610-T3 Moving arm (vertical) 2 / ZY Y KK86D · Z KK100 10–17 Configure ↗
HRCR-KK86XX60-T4 Polar 2 / XZ X KK86D · Z KK60D 10 Configure ↗
HRCR-KK10XX86-T4 Polar 2 / XZ X KK100 · Z KK86D 28 Configure ↗
HRCR-KK8660XX-T5 Gantry 2 / XY X KK86D + KK86D auxiliary · Y KK60D 20 Configure ↗
HRCR-KK1086XX-T5 Gantry 2 / XY X KK100 + KK100 auxiliary (gantry control) · Y KK86D 24–32 Configure ↗
HRCR-KK866050-T6 Cantilever 3 / XYZ X KK86D · Y KK60D · Z KK50 6.5 Configure ↗
HRCR-KK108660-T6 Cantilever 3 / XYZ X KK100 · Y KK86D · Z KK60D 10 Configure ↗
HRCR-KK866050-T7 Gantry 3 / XYZ X KK86D + KK86D auxiliary · Y KK60D · Z KK50 6.5 Configure ↗
HRCR-KK108660-T7 Gantry 3 / XYZ X KK100 + KK100 auxiliary (gantry control) · Y KK86D · Z KK60D 11 Configure ↗
HRCR-KK106086-T8 Polar 3 / XYZ X KK100 · Y KK60D · Z KK86D 9–13 Configure ↗

Part numbers & options

How a part number reads

HRCR - KK 10 86 60 - T1 1 S - X - Y - Z - E1 - S (spaces between decoded positions)

HRCR
Series — HIWIN Robot Cartesian Robot
KK
Mechanism — K KK single-axis stage series
10
X axis size — 10 KK100 · 86 KK86 · 60 KK60 · 50 KK50 · XX unspecified
86
Y axis size — 10 KK100 · 86 KK86 · 60 KK60 · 50 KK50 · XX unspecified
60
Z axis size — 10 KK100 · 86 KK86 · 60 KK60 · 50 KK50 · XX unspecified
T1
Type — T1/T6 cantilever · T2 cross · T3 moving arm · T4/T8 polar · T5/T7 gantry
1
Assembly orientation — per the assembly orientation diagram
S
Cover and mounting — S KK aluminum cover, mounted from top of rail · B KK labyrinth cover, mounted from bottom of rail
X
X axis effective stroke
Y
Y axis effective stroke
Z
Z axis effective stroke
E1
Servo motor — 0 not included · C provided by customer · E1 HIWIN MIKRO E1 series · HCR4 HCR4 controller
S
Shipping method — S assembled shipping · K KIT shipping (unassembled)

The configurator assembles this number for you, with drawings and 3D CAD. Configure ↗

Servo motor and controller

The motor slot orders the drive package shipped with the mechanism.

  • 0 Not included — Mechanism only
  • C Provided by customer — Mounts a customer-supplied servo
  • E1 HIWIN MIKRO E1 series — AC servo motor and drive
  • HCR4 HCR4 controller — Four-axis controller for the HCROS/HRSim stack

Cover and mounting

The cover code also sets the mounting direction of the KK stage.

  • S KK aluminum cover — Mounting from the top of the rail
  • B KK labyrinth cover — Mounting from the bottom of the rail

Shipping method

Systems ship built or as a kit.

  • S Assembled shipping — Arrives as a working assembly
  • K KIT shipping — Unassembled kit with brackets

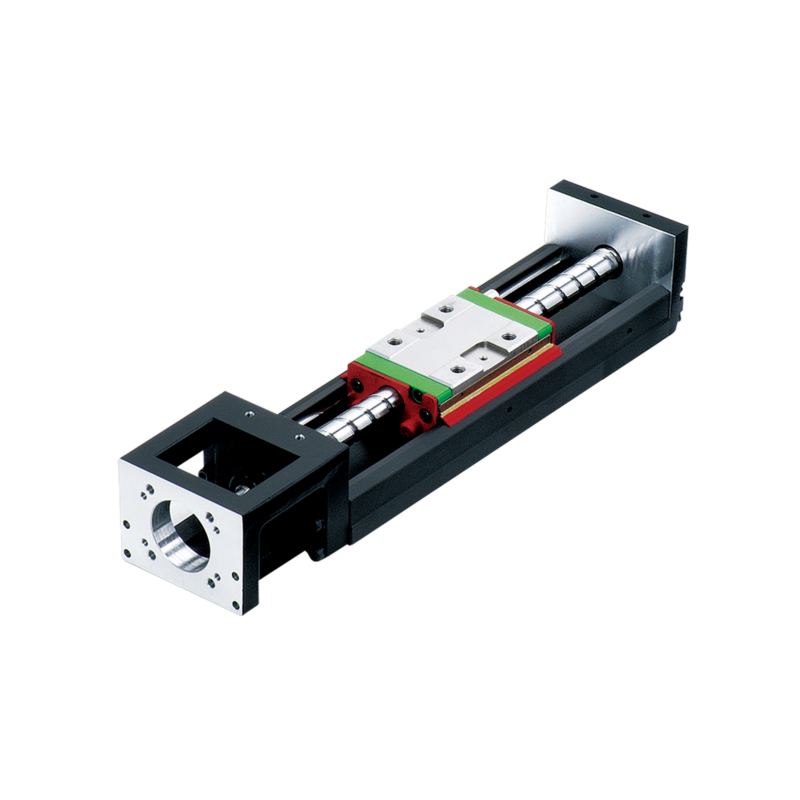

Other KK Series Ballscrew Stages

A person views a computer monitor displaying a 3D technical drawing with dimensions and specifications for a rectangular component. The interface features green and white colors, and there is a window in the background.

How buying works

Spec it in the configurator: drawings, 3D CAD, and a quote to follow.

HIWIN series are configured to your application, not bought off the shelf. Start from your loads and speeds if you are still choosing a size.

Rather talk it through? Request a quote from an application engineer.
