DGH-PH Series
DGH-PH Heavy-Load Combination Strain Wave Gear, Hollow Shaft Input
- Type
- Combination unit (PH), hollow shaft input
- Models
- 14 - 40 (6 sizes)
- Reduction Ratios
- 50 - 160
- Rated Torque
- 7 - 382 Nm

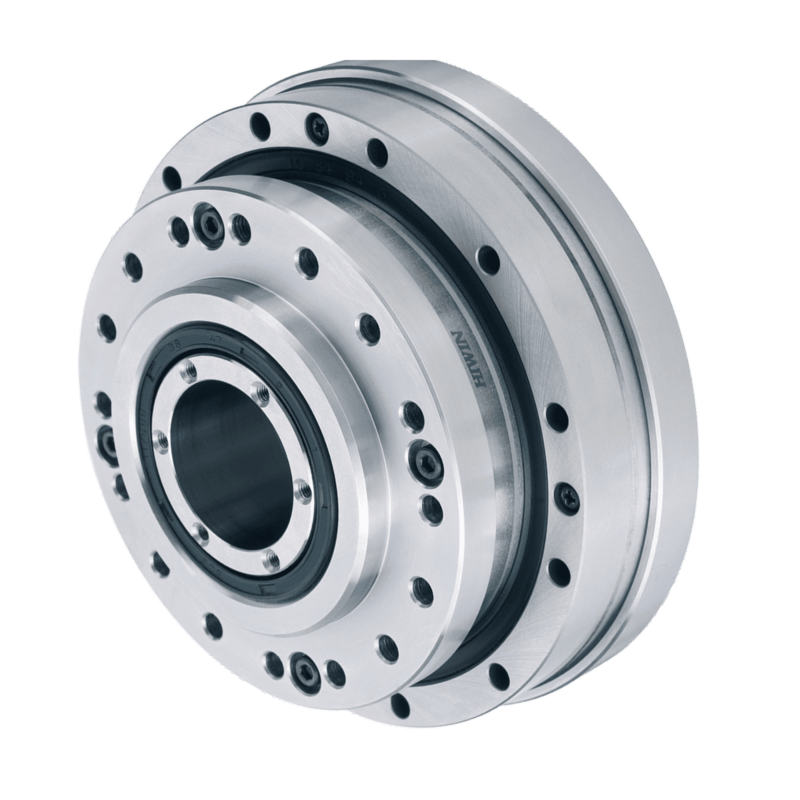

The DGH-PH is the heavy-load DATORKER strain wave gear as a hollow-shaft unit: a wave generator, hollow-type flex spline and ring-type circular spline that put high reduction ratios in less space, with a 30% higher torque load than the standard series. The hollow shaft passes through the unit, a crossed roller bearing is included, and it arrives assembled and lubricated.
-
1 arc min
Angle transmission accuracy, models 20 to 40
-
841 Nm
Peak start/stop torque (DGH-40-160-PH)
-
8,500 rpm
Permissible max input speed (model 14)
Applications
- Robot joints
- Automation equipment
- Semiconductor equipment
- Machine tools
Models & ratios
DGH-25-100-PH reads model 25, reduction ratio 100, hollow combination type (PH). Ratio availability grows with frame size: model 14 tops out at 100, model 17 at 120, and models 20 to 40 run to 160. Rated torque is at a 2,000 rpm input; peak torque is the permissible value at start and stop.
| Model number | Reduction ratio | Rated torque (Nm) | Peak torque (Nm) | Configure |
|---|---|---|---|---|
| DGH-14-50-PH | 50 | 7.0 | 23 | Configure ↗ |
| DGH-14-80-PH | 80 | 10 | 30 | Configure ↗ |
| DGH-14-100-PH | 100 | 10 | 36 | Configure ↗ |
| DGH-17-50-PH | 50 | 21 | 44 | Configure ↗ |
| DGH-17-80-PH | 80 | 29 | 56 | Configure ↗ |
| DGH-17-100-PH | 100 | 31 | 70 | Configure ↗ |
| DGH-17-120-PH | 120 | 31 | 70 | Configure ↗ |
| DGH-20-50-PH | 50 | 33 | 73 | Configure ↗ |
| DGH-20-80-PH | 80 | 44 | 96 | Configure ↗ |
| DGH-20-100-PH | 100 | 52 | 107 | Configure ↗ |
| DGH-20-120-PH | 120 | 52 | 113 | Configure ↗ |
| DGH-20-160-PH | 160 | 52 | 120 | Configure ↗ |
| DGH-25-50-PH | 50 | 51 | 127 | Configure ↗ |
| DGH-25-80-PH | 80 | 82 | 178 | Configure ↗ |
| DGH-25-100-PH | 100 | 87 | 204 | Configure ↗ |
| DGH-25-120-PH | 120 | 87 | 217 | Configure ↗ |
| DGH-25-160-PH | 160 | 87 | 229 | Configure ↗ |
| DGH-32-50-PH | 50 | 99 | 281 | Configure ↗ |
| DGH-32-80-PH | 80 | 153 | 395 | Configure ↗ |
| DGH-32-100-PH | 100 | 178 | 433 | Configure ↗ |
| DGH-32-120-PH | 120 | 178 | 459 | Configure ↗ |
| DGH-32-160-PH | 160 | 178 | 484 | Configure ↗ |
| DGH-40-50-PH | 50 | 178 | 523 | Configure ↗ |
| DGH-40-80-PH | 80 | 268 | 675 | Configure ↗ |
| DGH-40-100-PH | 100 | 345 | 738 | Configure ↗ |
| DGH-40-120-PH | 120 | 382 | 802 | Configure ↗ |
| DGH-40-160-PH | 160 | 382 | 841 | Configure ↗ |
Part numbers & options
How a part number reads
DGH - 25 - 100 - PH - C
- DGH
- Type — D DATORKER · G heavy load (S standard, T thin) · H hollow flex spline (C cup)
- 25
- Model — 14, 17, 20, 25, 32, 40
- 100
- Reduction ratio — 50, 80, 100, 120, 160
- PH
- Module + input — P combination · C component · A sealed / H hollow shaft · O Oldham · J solid · E flat · R rigidity · Q quick installation
- C
- Customized — M high tilting moment · L lightweight · S surface treatment · C customized (blank = standard)
The configurator assembles this number for you, with drawings and 3D CAD. Configure ↗
DGH family types
The fourth code picks the module and input; the heavy-load hollow family offers four builds.
- PO Oldham combination — Self-aligning input shaft, takes axial and radial load
- PH Hollow combination — Input hollow shaft, takes axial and radial load: this series
- AH Hollow sealed — Hollow shaft in a completely sealed, user-friendly unit
- AJ Solid shaft — Input solid shaft, takes axial and radial load
Custom options
An optional last code marks a customized build; blank is standard.
- M High tilting moment — Higher output-bearing moment capacity
- L Lightweight — Weight-reduced variant
- S Surface treatment — Treated surfaces for the environment
- C Customized — Built to a customer specification
