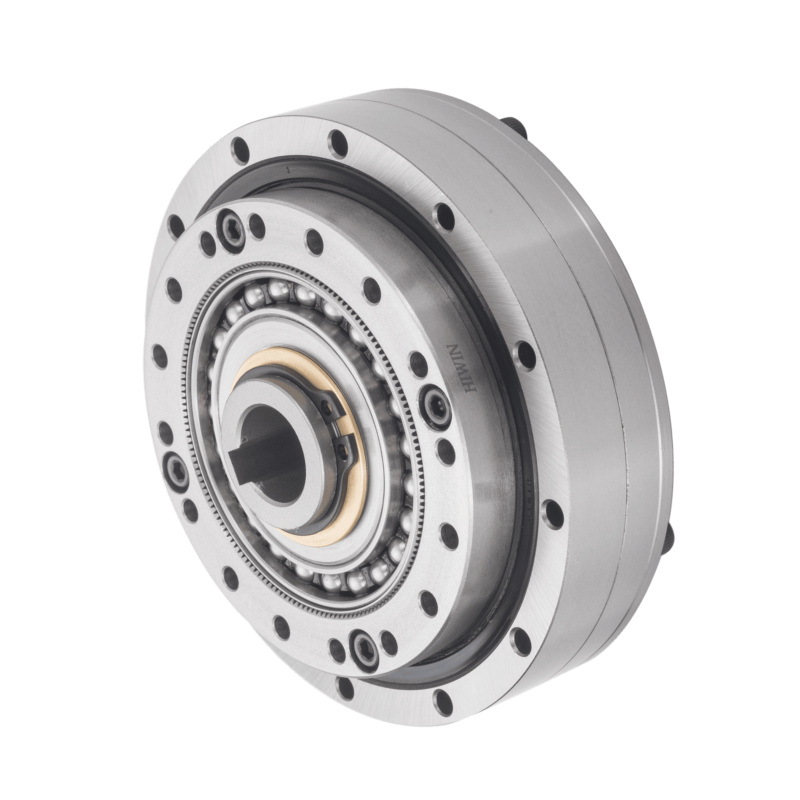

DSH-PO Series
Strain Wave Gear with Self-Aligning Input (Oldham Combination Type)
DATORKER® Strain Wave Gearing Systems

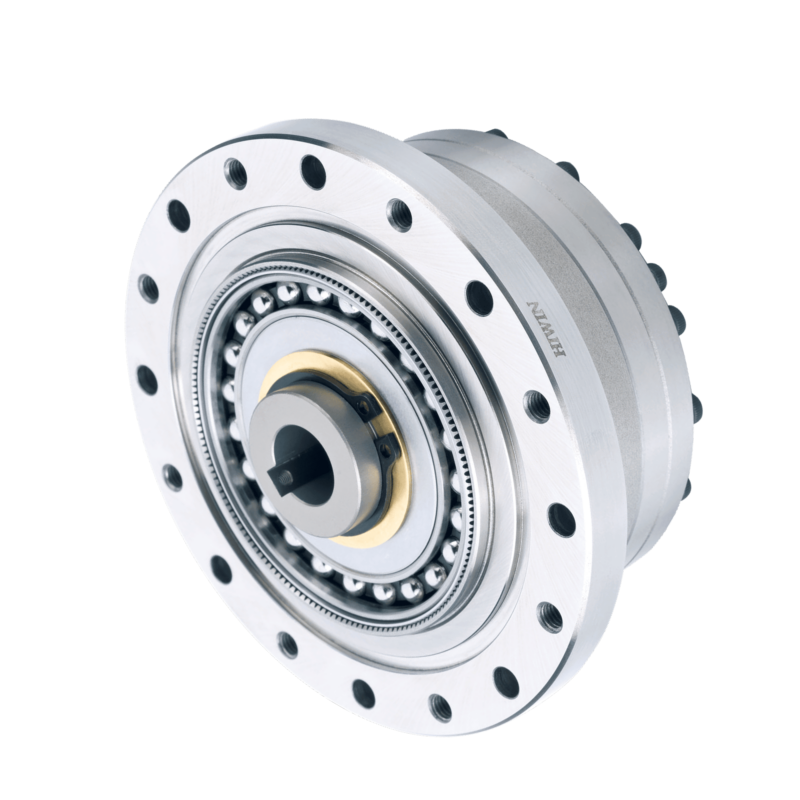

DGH-PO Series
DGH-PO Heavy Load Combination Strain Wave Gear, Oldham Input
- Type
- Combination unit (PO) with crossed roller bearing, Oldham input
- Models
- 14 - 40 (6 sizes)
- Reduction Ratios
- 50 - 160
- Rated Torque
- 7 - 382 Nm
The DGH-PO combines the heavy-load DATORKER gearset (a hollow type flex spline driven by the wave generator inside a ring type circular spline, for high reduction ratios in minimal space) with a 30% higher torque load than the standard series. The unit comes assembled and lubricated, crossed roller bearing included. Its input self-aligning shaft compensates motor mounting error, and the assembly withstands axial and radial loads.
-
1 arc min
Angle transmission accuracy, models 20 to 40
-
841 Nm
Peak start/stop torque (DGH-40-160)
-
8,500 rpm
Permissible max input speed (model 14)
Applications
- Robot joints
- Automation equipment
- Semiconductor equipment
- Machine tools
- Inspection equipment
Models & ratios
Rated torque is at 2,000 rpm input; peak torque covers start and stop. Ratios step up with size: model 14 runs 50 to 100, model 17 adds 120, and models 20 to 40 run the full 50 to 160 spread.
| Model number | Reduction ratio | Rated torque (Nm) | Peak torque (Nm) | Configure |
|---|---|---|---|---|
| DGH-14-50-PO | 50 | 7.0 | 23 | Configure ↗ |
| DGH-14-80-PO | 80 | 10 | 30 | Configure ↗ |
| DGH-14-100-PO | 100 | 10 | 36 | Configure ↗ |
| DGH-17-50-PO | 50 | 21 | 44 | Configure ↗ |
| DGH-17-80-PO | 80 | 29 | 56 | Configure ↗ |
| DGH-17-100-PO | 100 | 31 | 70 | Configure ↗ |
| DGH-17-120-PO | 120 | 31 | 70 | Configure ↗ |
| DGH-20-50-PO | 50 | 33 | 73 | Configure ↗ |
| DGH-20-80-PO | 80 | 44 | 96 | Configure ↗ |
| DGH-20-100-PO | 100 | 52 | 107 | Configure ↗ |
| DGH-20-120-PO | 120 | 52 | 113 | Configure ↗ |
| DGH-20-160-PO | 160 | 52 | 120 | Configure ↗ |
| DGH-25-50-PO | 50 | 51 | 127 | Configure ↗ |
| DGH-25-80-PO | 80 | 82 | 178 | Configure ↗ |
| DGH-25-100-PO | 100 | 87 | 204 | Configure ↗ |
| DGH-25-120-PO | 120 | 87 | 217 | Configure ↗ |
| DGH-25-160-PO | 160 | 87 | 229 | Configure ↗ |
| DGH-32-50-PO | 50 | 99 | 281 | Configure ↗ |
| DGH-32-80-PO | 80 | 153 | 395 | Configure ↗ |
| DGH-32-100-PO | 100 | 178 | 433 | Configure ↗ |
| DGH-32-120-PO | 120 | 178 | 459 | Configure ↗ |
| DGH-32-160-PO | 160 | 178 | 484 | Configure ↗ |
| DGH-40-50-PO | 50 | 178 | 523 | Configure ↗ |
| DGH-40-80-PO | 80 | 268 | 675 | Configure ↗ |
| DGH-40-100-PO | 100 | 345 | 738 | Configure ↗ |
| DGH-40-120-PO | 120 | 382 | 802 | Configure ↗ |
| DGH-40-160-PO | 160 | 382 | 841 | Configure ↗ |
Part numbers & options
How a part number reads
DGH - 25 - 100 - PO - C (spaces between decoded positions)
- DGH
- Type — D DATORKER · G heavy load (S standard, T thin) · H hollow flex spline (C cup)
- 25
- Model — 14, 17, 20, 25, 32, 40
- 100
- Reduction ratio — 50, 80, 100, 120, 160
- PO
- Module + input — P combination (C component, A sealed) · O Oldham coupling (H hollow, J solid)
- C
- Customized — M high tilting moment · L lightweight · S surface treatment · C customized (blank = standard)
The configurator assembles this number for you, with drawings and 3D CAD. Configure ↗
Customized executions
The trailing code orders a factory variation; leave it blank for the standard unit.
- M High tilting moment — Reinforced against moment loads
- L Lightweight — Weight-reduced execution
- S Surface treatment — Environmental protection
- C Customized — Built to customer requirement
