Incremental Position Measurement System

Also listed as PM Series

Incremental Position Measurement System, PM Series

Series: PM incremental, types C, PG (20/25/30/35/45/55), T
Output: Analog SIN/COS or digital 5 V TTL/RS422
Resolution: 2 mm analog / 1 µm digital
Protection: Oilproof, dustproof, waterproof (IP67)

The PM Series incremental system is a non-contact magnetic encoder for machine axes: high accuracy, high repeatability, and a short install. Analog and digital outputs ship from the same family. Because the principle is magnetic, oil, water, and dust do not blind the scale the way they blind optics, so the head stays in the cut. T type adds an LED that reports signal quality while you set the gap. C type and PG type bolt to a HIWIN guideway and drop the separate encoder bracket.

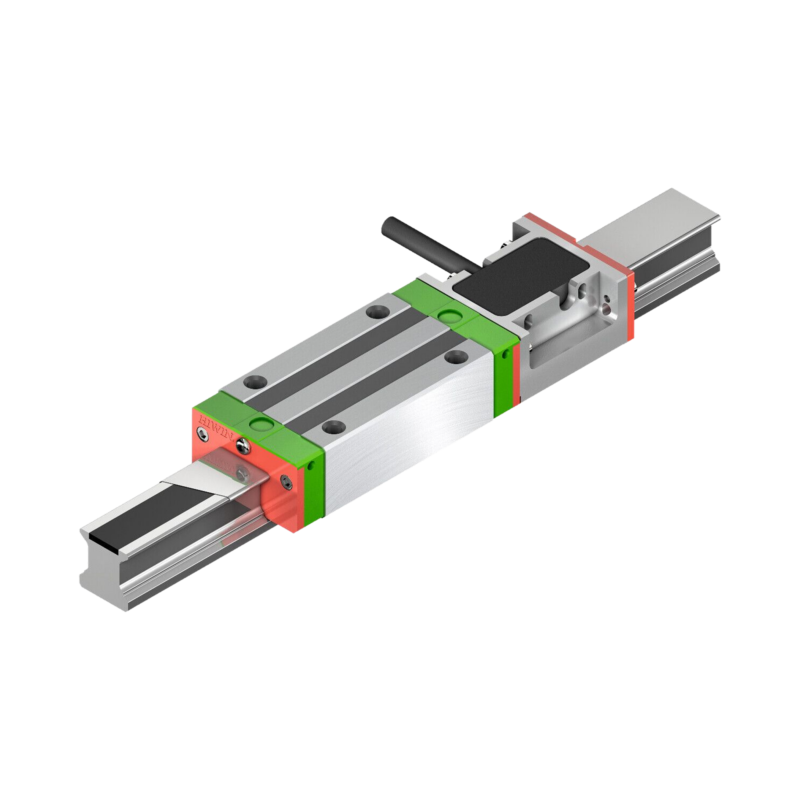

PG20 to PG55 heads mount on the PG Series guideway, whose rail carries the embedded magnetic scale. View PG Series →

±1 µm

Repeatability
±8 µm/m

Accuracy at 20 °C
1 µm

Digital resolution

Applications

Machine tools: carving, milling and turning
Automotive assembly and component manufacturing
Wood and metal processing
Automation equipment
3D dimension and profile measurement
Inkjet printing
Solar stringer equipment
Energy power: lifting, sorting, pick and place

Types

C and PG types combine with a guideway; T is the standalone head with LED status. PG heads come in sizes 20, 25, 30, 35, 45 and 55; dimensions for PG30 to PG55 are available from HIWIN. Analog resolution is one count per 2 mm pole; digital resolves 1 µm. Repeatability ±1 µm, accuracy ±8 µm/m.

Type	Output Signal	Resolution	Repeatability (µm)	Accuracy (µm/m)
C	Analog / Digital	2 mm / 1 µm	±1	±8
PG20	Analog / Digital	2 mm / 1 µm	±1	±8
PG25	Analog / Digital	2 mm / 1 µm	±1	±8
PG30	Analog / Digital	2 mm / 1 µm	±1	±8
PG35	Analog / Digital	2 mm / 1 µm	±1	±8
PG45	Analog / Digital	2 mm / 1 µm	±1	±8
PG55	Analog / Digital	2 mm / 1 µm	±1	±8
T	Analog / Digital	2 mm / 1 µm	±1	±8

Part numbers & options

How a part number reads

PM - 00 - 03 - 3 A - T - 10 (spaces between decoded positions)

PM: Series — incremental position measurement read head
00: Resolution — 00 1 pole pitch (analog) · 10 1 µm (digital)
03: Cable length — 01 1 m · 02 2 m … 25 25 m (max)
3: Connector — 0 flying lead · 1 SCSI 20 pin · 3 D-sub 15 pin · 4 M17 17-pin circular · 6 D-sub VGA 15 pin · 7 D-sub 9 pin · 8 SCR 10 pin
A: Output signal — A analog + digital index/pole pitch · D digital + digital index/pole pitch · I analog + one digital index · E digital + one index
T: Housing — T T type (with LED) · C C type · G PG type (PG20, PG25, PG30, PG35, PG45, PG55)
10: Reserve code — standard 10

Order from the codes below, or send the axis details to an application engineer for a part number.

Resolution

The resolution code sets the signal chain: analog for speed, digital for direct 1 µm feedback.

00 1 pole pitch (analog) — SIN/COS 0.6~1.2 Vp-p, travels to 15 m/s
10 1 µm (digital) — 5 V TTL/RS422, travels to 7 m/s

Output signal

How the reference index is delivered; each code pairs with the matching scale execution.

A Analog output, digital index per pole pitch — Requires scale PS08-XXXX-S-00
D Digital output, digital index per pole pitch — Requires scale PS08-XXXX-S-00
I Analog output, one digital index — Requires scale PS08-XXXX-C-XX
E Digital output, one index — Requires scale PS08-XXXX-C-XX

Housing

T, C and PG types cover standalone and guideway-integrated installs.

T T type — Standalone head with LED status for gap setting
C C type — Combined with a HIWIN guideway to save the encoder bracket
G PG type — PG20 to PG55 heads on the PG Series positioning guideway; PG30 to PG55 dimensions from HIWIN
