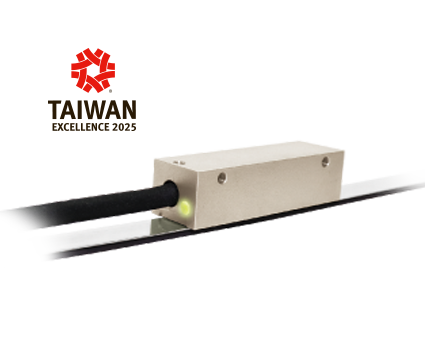

A rectangular metallic sensor with a black cable and glowing green indicator, positioned on a reflective surface. The Taiwan Excellence 2025 logo appears in the background.

Absolute Position Measurement System

Also listed as APM Series

Absolute Position Measurement System, APM Series

Series
APM absolute, T type
Output
BiSS 27-bit / H-code
Resolution
1 µm
Protection
IP68

The APM Series is a true-absolute magnetic encoder: position is encoded on the scale, not held in a buffer battery, so a power cycle does not send the axis looking for home. An LED reports signal quality while you set the gap. The same magnetic principle as the incremental family shrugs off oil, water, and dust. Resolution reaches 1 µm, repeatability ±1 µm, and the housing is rated IP68. Output is BiSS 27-bit or H-code, which talks to the major drive and controller families without a proprietary box in between.

  • ±1 µm

    Repeatability

  • 1 µm

    Resolution

  • IP68

    Housing protection

Applications

  • Machine tools: carving, milling and turning
  • Automotive assembly and component manufacturing
  • Wood and metal processing
  • Automation equipment
  • 3D dimension and profile measurement
  • Inkjet printing
  • Solar stringer equipment
  • Energy power: lifting, sorting, pick and place

Types

APM currently lists one housing: T type, with BiSS 27-bit or H-code output. Resolution 1 µm, repeatability ±1 µm, accuracy ±20 µm/m.

Type Output Signal Resolution (µm) Repeatability (µm) Accuracy (µm/m)
T BiSS 27 bit / H-code 1 ±1 ±20

Part numbers & options

Output signal

Two serial protocols cover the drives and controllers APM is built to talk to.

  • BiSS BiSS 27-bit — Absolute serial interface, 27-bit position word
  • H H-code — H-code absolute protocol for compatible controllers

Position scale (APS20)

The matching absolute scale orders separately as APS20: one accuracy class, cut to length.

  • 20 ±20 µm/m accuracy — At 20 °C, the one printed class
  • 100…16300 Length in mm — 16.3 m maximum in one piece
