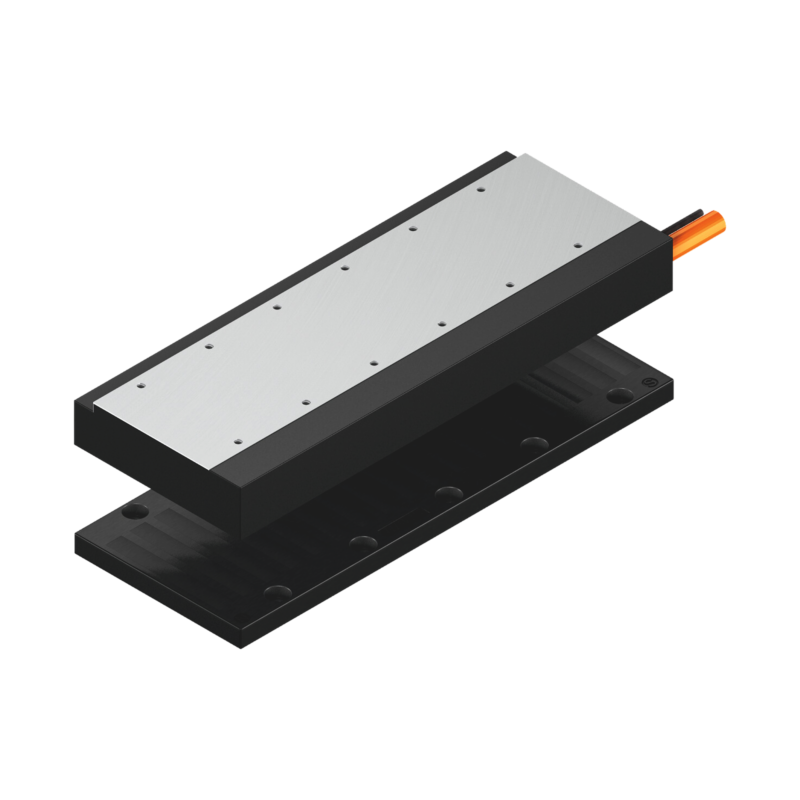

LMSA Series
Iron-core linear motors with high power density and minimal cogging: peak force 4,458 N
Linear Motor Components
LMFA Series

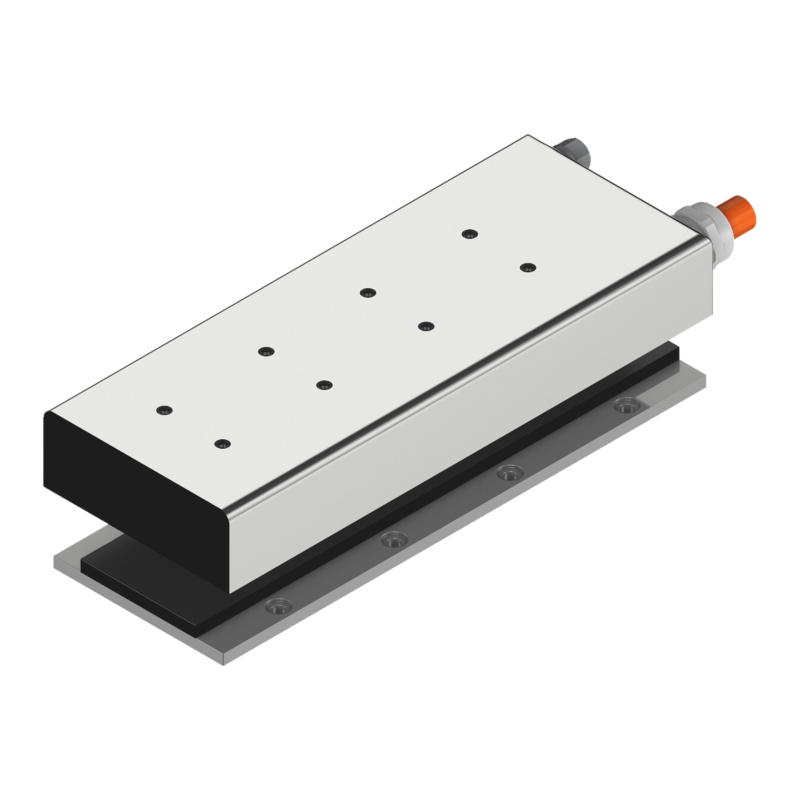

LMFA Series Water-Cooled Iron-Core Linear Motor
- Type
- Iron-core forcer + magnet stator, water cooled
- Models
- 25 (each also as L low back-EMF winding)
- Continuous Force (WC)
- 149 - 7,917 N
- Peak Force (1 s)
- 282 - 20,827 N
HIWIN synchronous linear motors LMFA are coiled stack of sheets with water-cooling loop. They are especially distinguished by very high power density and minimum cogging force. This three-phase motor is composed of a primary part (forcer) with iron core and secondary part (stator) with permanent magnets. With the combination of several stators, many stroke combinations are possible.
Without the water-cooling loop, the LMSA series covers the same iron-core construction for standard duty cycles. View LMSA Series →
-
20,827 N
Peak force of the largest model (LMFA64)
-
2×
Continuous force with the water circuit vs. natural cooling
-
48.5-66.1 mm
Total installation height across the four frame heights
Applications
- Machine tools
- Laser processing machines
- Glass cutting machines
- Active vibration suppression platforms
Models
Model digits encode forcer width (0-6) and length (1-4): an LMFA31 is a 141 mm wide, 214 mm long forcer. Continuous force figures are the water-cooled (WC) rating at the catalog's minimum flow rate; without cooling water the catalog's Fc column is about half. Every model also ships as an L low back-EMF winding with the same force ratings at higher speed.
| Model | Continuous force WC (N) | Peak force 1 s (N) | Attraction force (N) | Height (mm) | Configure |
|---|---|---|---|---|---|
| LMFA01 | 149 | 282 | 457 | 48.5 | Configure ↗ |
| LMFA02 | 297 | 564 | 914 | 48.5 | Configure ↗ |
| LMFA03 | 446 | 845 | 1372 | 48.5 | Configure ↗ |
| LMFA11 | 272 | 516 | 837 | 48.5 | Configure ↗ |
| LMFA12 | 544 | 1032 | 1674 | 48.5 | Configure ↗ |
| LMFA13 | 816 | 1548 | 2511 | 48.5 | Configure ↗ |
| LMFA14 | 1089 | 2063 | 3348 | 48.5 | Configure ↗ |
| LMFA21 | 409 | 776 | 1259 | 50.5 | Configure ↗ |
| LMFA22 | 819 | 1552 | 2518 | 50.5 | Configure ↗ |
| LMFA23 | 1228 | 2328 | 3777 | 50.5 | Configure ↗ |
| LMFA24 | 1638 | 3104 | 5036 | 50.5 | Configure ↗ |
| LMFA31 | 759 | 1750 | 3430 | 64.1 | Configure ↗ |
| LMFA32 | 1519 | 3500 | 6860 | 64.1 | Configure ↗ |
| LMFA33 | 2278 | 5250 | 10290 | 64.1 | Configure ↗ |
| LMFA34 | 3037 | 7000 | 13720 | 64.1 | Configure ↗ |
| LMFA41 | 990 | 2603 | 5145 | 66.1 | Configure ↗ |
| LMFA42 | 1979 | 5207 | 10290 | 66.1 | Configure ↗ |
| LMFA43 | 2969 | 7810 | 15435 | 66.1 | Configure ↗ |
| LMFA44 | 3958 | 10413 | 20580 | 66.1 | Configure ↗ |
| LMFA52 | 2844 | 6925 | 13700 | 64.1 | Configure ↗ |
| LMFA53 | 4266 | 10388 | 20550 | 64.1 | Configure ↗ |
| LMFA54 | 5688 | 13850 | 27400 | 64.1 | Configure ↗ |
| LMFA62 | 3958 | 10413 | 20580 | 66.1 | Configure ↗ |
| LMFA63 | 5938 | 15620 | 30870 | 66.1 | Configure ↗ |
| LMFA64 | 7917 | 20827 | 41160 | 66.1 | Configure ↗ |
Part numbers & options
How a part number reads
LM FA 3 1 L B (forcer order code; matching magnet tracks order as LMF stators)
- LM
- Linear motor
- FA
- Motor type — FA iron-core with water cooling
- 3
- Forcer width — 0 67 · 1 96 · 2 126 · 3 141 · 4 188 · 5 248 · 6 342 mm
- 1
- Forcer length — LMFA 0-2: 1 145 · 2 250 · 3 355 · 4 460 mm; LMFA 3-6: 1 214 · 2 375 · 3 536 · 4 697 mm
- L
- Winding — blank standard · L low back-EMF (higher speed)
- B
- Finish — blank anodized black · B non-anodized
The configurator assembles this number for you, with drawings and 3D CAD. Configure ↗
Windings
Same forcer, two winding tunes; force ratings are identical.
- — Standard — Force-constant optimized
- L Low back-EMF — Higher speed at the same bus voltage
Cooling
Water cooling is built in; a bolt-on precision stage is optional.
- WC Built-in water circuit — 3.3-7.8 L/min at 20 °C doubles the continuous force
- LMFC Precision cooling system — Dual reflux jacket holds the motor surface temperature
Stators (LMF)
Magnet tracks chain end to end to build the stroke.
- S / C Standard or customized — Widths 58-334 mm matched to the forcer
- 1-3 Segment lengths — 120 / 180 / 300 mm (LMF0-2), 184 / 276 / 460 mm (LMF3-5), 184 mm (LMF6)
- EP Magnet package — EP epoxy, or blank for cover plate
Protection
- PTC 1× Pt1000 + 3× PTC SNM120 in series — In-winding protection to the 120 °C limit
Downloads
Other Linear Motor Components
-
-

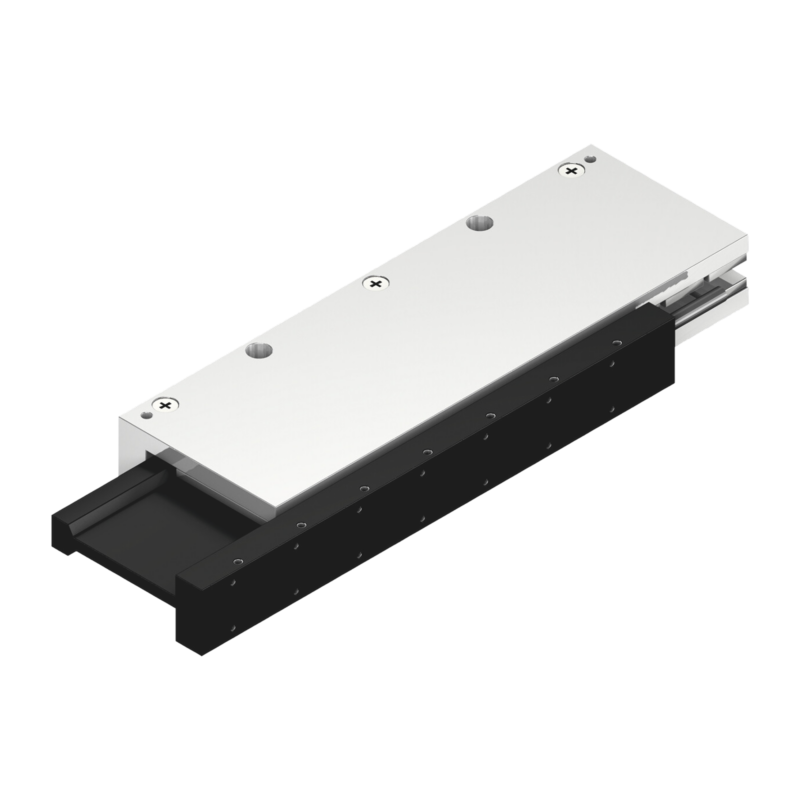

LMC Series
Coreless linear motors with epoxy-cast coils: no cogging, low inertia, high acceleration
Linear Motor Components
-

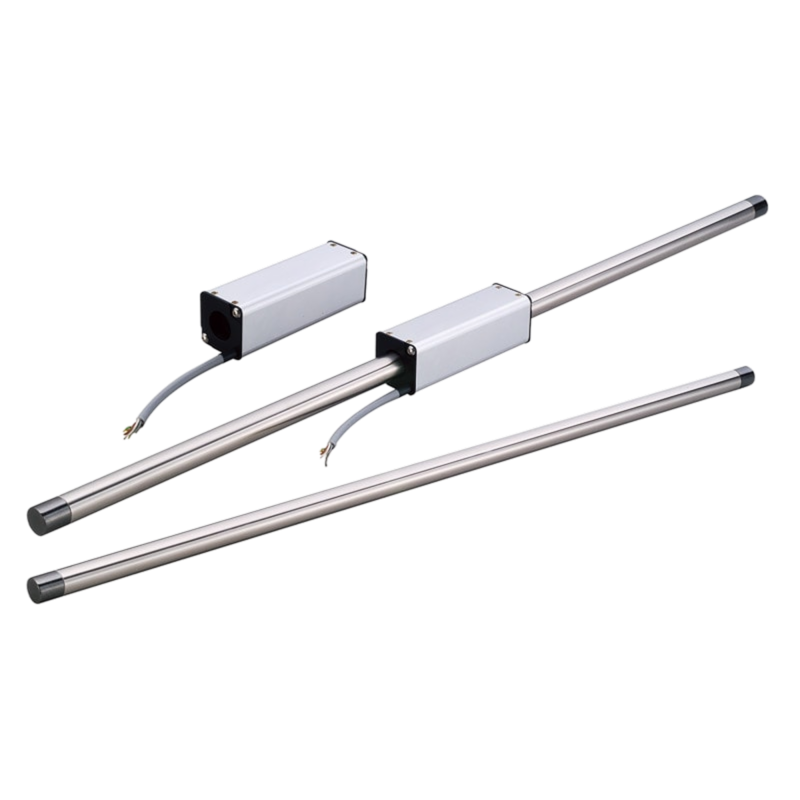

LMT Series
