CRBB Series

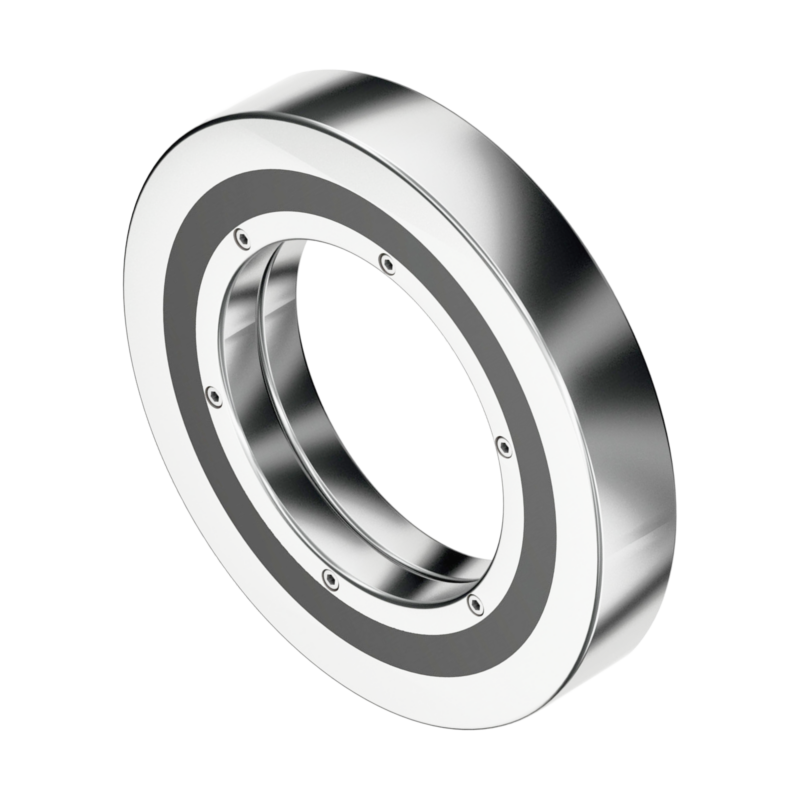

CRBB Split Inner Ring Crossed Roller Bearing
- Type
- Split inner ring (CRBB)
- Bore Diameter
- 30 - 400 mm
- Dynamic Load Rating
- 8.2 [kN] - 227 [kN]
- Accuracy Grades
- P5, P4, P2, PD5
Split inner ring type (CRBB): Consists of two inner semi-rings and an outer ring, which is suitable for rotating the outer ring.
Rotating the inner ring instead? CRBA is the mirror construction: one inner ring, two outer semi-rings. View CRBA Series →
-
37
Standard bearing sizes
-
523.9 kN
Max static load rating (CRBB 40035)
-
60,000
Allowable DN value (mm·rpm)
Applications
- Industrial automation control
- Robotics
- Machine tools
- Inspection and measuring devices
- Medical devices
Sizes
Bearing numbers encode bore and width: CRBB 08016 is an 80 mm bore, 16 mm wide. All 37 sizes come sealed (WW) or open (NN), in clearance C8 (zero backlash) or C1 (low friction).
| Bearing No. | Bore Ø (mm) | Outer Ø (mm) | Width (mm) | Dynamic load C (kN) | Configure |
|---|---|---|---|---|---|
| CRBB 03010 | 30 | 55 | 10 | 8.2 | Configure ↗ |
| CRBB 03510 | 35 | 60 | 10 | 8.5 | Configure ↗ |
| CRBB 04010 | 40 | 65 | 10 | 9.3 | Configure ↗ |
| CRBB 04510 | 45 | 70 | 10 | 9.6 | Configure ↗ |
| CRBB 05013 | 50 | 80 | 13 | 18.9 | Configure ↗ |
| CRBB 06013 | 60 | 90 | 13 | 20.3 | Configure ↗ |
| CRBB 07013 | 70 | 100 | 13 | 21.7 | Configure ↗ |
| CRBB 08013 | 80 | 110 | 13 | 22.8 | Configure ↗ |
| CRBB 08016 | 80 | 120 | 16 | 30.2 | Configure ↗ |
| CRBB 09016 | 90 | 130 | 16 | 30.8 | Configure ↗ |
| CRBB 09020 | 90 | 140 | 20 | 39.7 | Configure ↗ |
| CRBB 10016 | 100 | 140 | 16 | 32.5 | Configure ↗ |
| CRBB 10020 | 100 | 150 | 20 | 40.4 | Configure ↗ |
| CRBB 11020 | 110 | 160 | 20 | 42.7 | Configure ↗ |
| CRBB 12016 | 120 | 150 | 16 | 28.1 | Configure ↗ |
| CRBB 12020 | 120 | 170 | 20 | 44.9 | Configure ↗ |
| CRBB 12025 | 120 | 180 | 25 | 66.3 | Configure ↗ |
| CRBB 13025 | 130 | 190 | 25 | 67.8 | Configure ↗ |
| CRBB 14025 | 140 | 200 | 25 | 69.5 | Configure ↗ |
| CRBB 15025 | 150 | 210 | 25 | 73.1 | Configure ↗ |
| CRBB 15030 | 150 | 230 | 30 | 114.3 | Configure ↗ |
| CRBB 16025 | 160 | 220 | 25 | 74.5 | Configure ↗ |
| CRBB 17020 | 170 | 220 | 20 | 52.3 | Configure ↗ |
| CRBB 18025 | 180 | 240 | 25 | 79.6 | Configure ↗ |
| CRBB 19025 | 190 | 240 | 25 | 54.5 | Configure ↗ |
| CRBB 20025 | 200 | 260 | 25 | 82.3 | Configure ↗ |
| CRBB 20030 | 200 | 280 | 30 | 122.9 | Configure ↗ |
| CRBB 20035 | 200 | 295 | 35 | 155.9 | Configure ↗ |
| CRBB 22025 | 220 | 280 | 25 | 86.3 | Configure ↗ |
| CRBB 24025 | 240 | 300 | 25 | 90.5 | Configure ↗ |
| CRBB 25025 | 250 | 310 | 25 | 91.6 | Configure ↗ |
| CRBB 25030 | 250 | 330 | 30 | 142 | Configure ↗ |
| CRBB 25040 | 250 | 355 | 40 | 207 | Configure ↗ |
| CRBB 30025 | 300 | 360 | 25 | 100.6 | Configure ↗ |
| CRBB 30035 | 300 | 395 | 35 | 191.6 | Configure ↗ |
| CRBB 30040 | 300 | 405 | 40 | 227 | Configure ↗ |
| CRBB 40035 | 400 | 480 | 35 | 219.4 | Configure ↗ |
Part numbers & options
How a part number reads
CRBB 080 16 WW C8 P5
- CRBB
- Model code — CRBA split outer · CRBB split inner · CRBC high rigidity · CRBD/CRBE with mounting holes · CRBX custom
- 080
- Bore diameter — 080 = 80 mm (30 to 400 mm for CRBB)
- 16
- Width (mm)
- (blank)
- Mounting holes — always blank on CRBB · A/B/C apply to CRBD and CRBE only
- WW
- Seals — WW sealed both sides · NN open (both keep oil holes)
- C8
- Clearance — C8 negative, zero backlash · C1 positive, low friction
- P5
- Accuracy — P5 · P4 · P2 · PD5 (CRBB); family also runs PD4 · PD2
The configurator assembles this number for you, with drawings and 3D CAD. Configure ↗
Accuracy grades
CRBB runs P5, P4, P2 and PD5. Runout is specified on the rotating outer ring: radial runout 8 to 23 µm by size in P5/PD5, down to 3 µm in P2.
- P5 Standard — General automation and fixtures
- P4 High — Robot joints, rotary tables
- P2 Precision — Machine tools, inspection equipment
- PD5 Tight-tolerance grade — Tighter bore and outside diameter tolerances at the same runout as P5
Internal clearance
- C8 Negative (preload) — Zero backlash for indexing and joints; friction rises during unloading
- C1 Positive — Lower friction torque under light duty
Seals
- WW Sealed both sides — Keeps the track clean, retains grease
- NN Open — Lowest friction for low-torque axes
