XEG-64
SKU: XEG-64
Electric gripper with 64 mm stroke and 180–450 N adjustable grip
- Repeatability
- ±0.01 mm
Robots are quoted to your application by a HIWIN engineer.

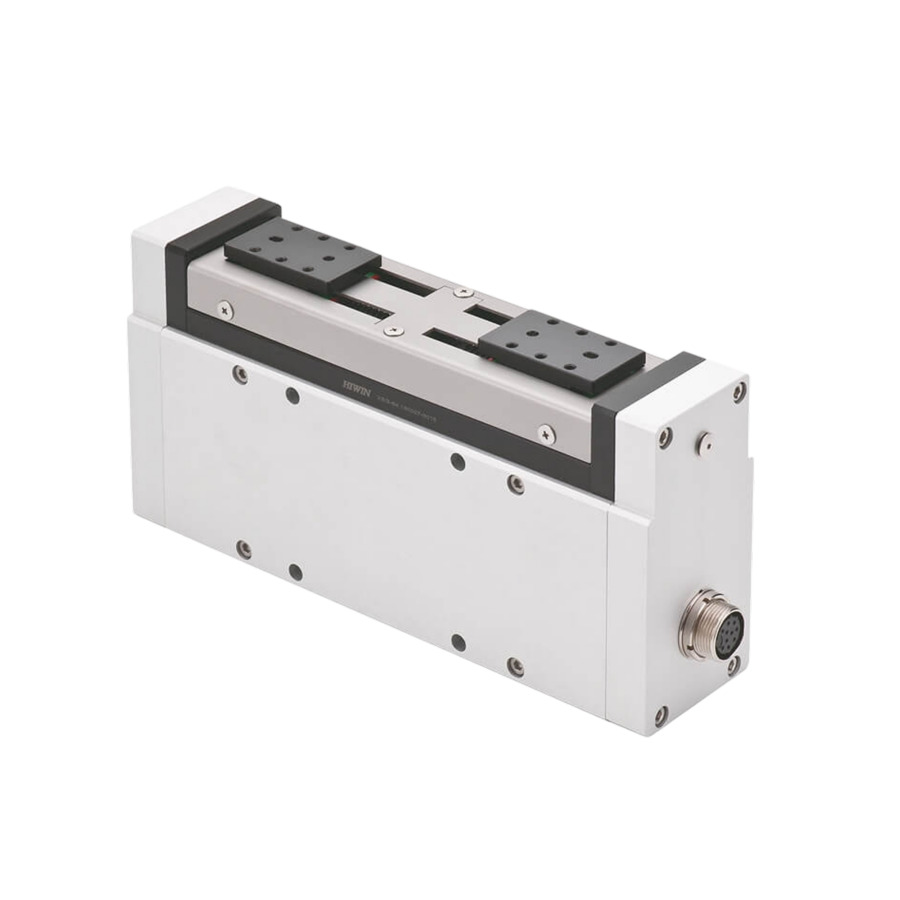

The larger XEG electric parallel gripper for heavier workpieces: the same linear-module construction and integrated stepper motor and encoder as the XEG-32, with 64 mm of total stroke and up to 450 N of gripping force. Direction, stroke, force, and speed are set in software, with auto-reset and adaptive gripping-force adjustment.
Key Features & Benefits
- Stepper motor and encoder with status feedback and object identification
- HIWIN linear module inside for speed, rigidity, and compact size
- Auto-reset and gripping-force adjustment for adaptive capture
- Serial and I/O communications
- UR+ and TM Plug&Play certified · Good Design Award 2017
-
64 mm
Total stroke
-
180–450 N
Gripping force
-
±0.01 mm
Repeatability
Applications
- Pick-and-place
- Assembly
- Machine tending
- Cleanroom handling
Specifications
- Model
- XEG-64
- Total stroke [mm]
- 64
- Gripping force [N]
- 180–450
- Speed, moving [mm/s]
- 1–100
- Speed, gripping [mm/s]
- 1–20
- Repeatability [mm]
- ±0.01
- Weight [kg]
- 1.9
- IP class
- IP20
- Cleanroom class
- ISO Class 5 (Class 100)
- Controller
- XEG-C1 (RS232) / XEG-C2 (RS485 Modbus-RTU)
- Safety / Environmental standard
- CE / RoHS
