RA605-GC
SKU: RA605-ROBOTIC

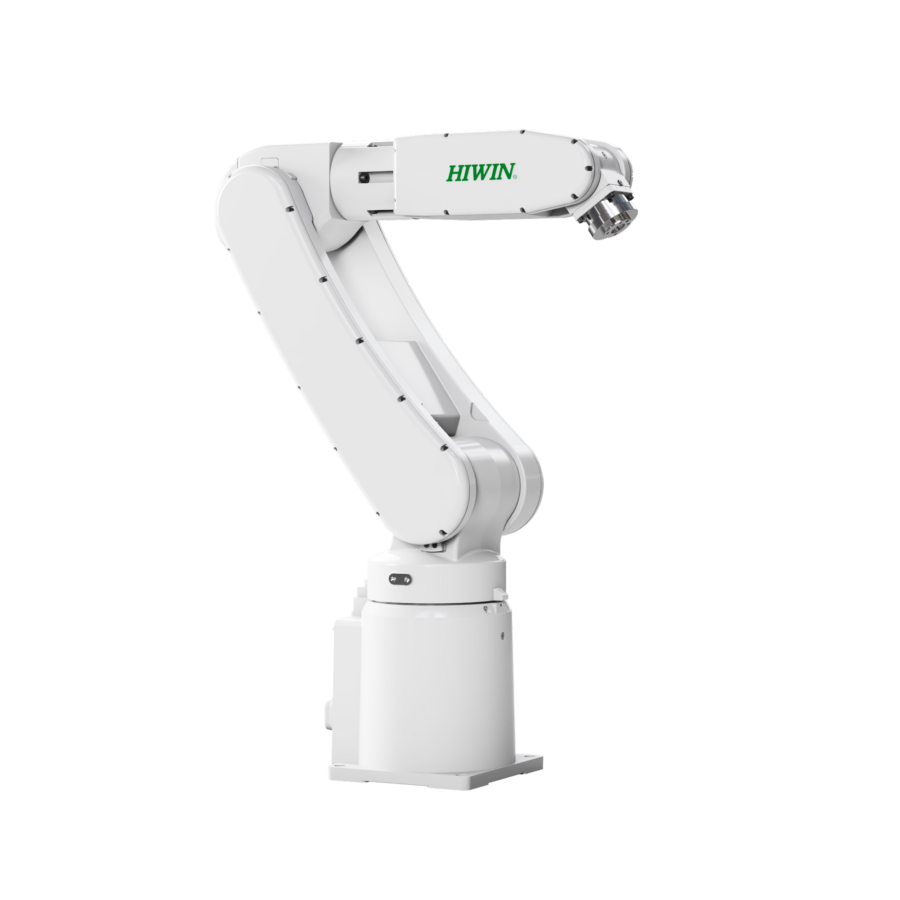

IP65 Articulated Robot with RCA605-GC controller
- Axes
- 6
- Payload
- 5 kg (7 kg max)
- Reach
- 710–909 mm
- Repeatability
- ±0.02–0.03 mm
Robots are quoted to your application by a HIWIN engineer.
A compact sized articulated robot with arm length and payload similar to a human arm. Its flexible design and small footprint makes it perfect in applications like assembly lines. It can also be used in inverted applications to save space. The GC series comes in 710 and 909 mm arms (RA605-710-GC, RA605-909-GC) with IP65 protection and the RCA605-GC controller.
Key Features & Benefits
- High speed
- High repeatability
- High IP protection
- Compliant with CE certification
-
0.5s
Cycle time
-
±0.02 mm
Repeatability (710 arm)
-
IP65
Protection rating
Applications
- Assembly
- Dispensing
- Visual inspection
- Small component loading and unloading
- Inverted application
Specifications
- Model
- RA605-GC
- Degrees of freedom
- 6
- Rated payload [kg]
- 5
- Maximum payload [kg]
- 7
- Max. reach radius [mm]
- 710 / 909
- Working range [deg]
- J1 ±165 · J2 +85~-125 · J3 +185~-55 · J4 ±190 · J5 ±115 · J6 ±360
- Repeatability [mm]
- ±0.02 (710) / ±0.03 (909)
- Cycle time [s]
- 0.5
- Weight [kg]
- 40 / 45
- Protection rating
- IP65
- Controller
- RCA605-GC
- Pneumatics
- Two channel pneumatic connections
- Safety / Environmental standard
- CE / RoHS2.0
Media
Downloads
- Industrial Robotics Catalog PDF
- Articulated Robot Controller (GB Series) User Manual PDF
