MG Series

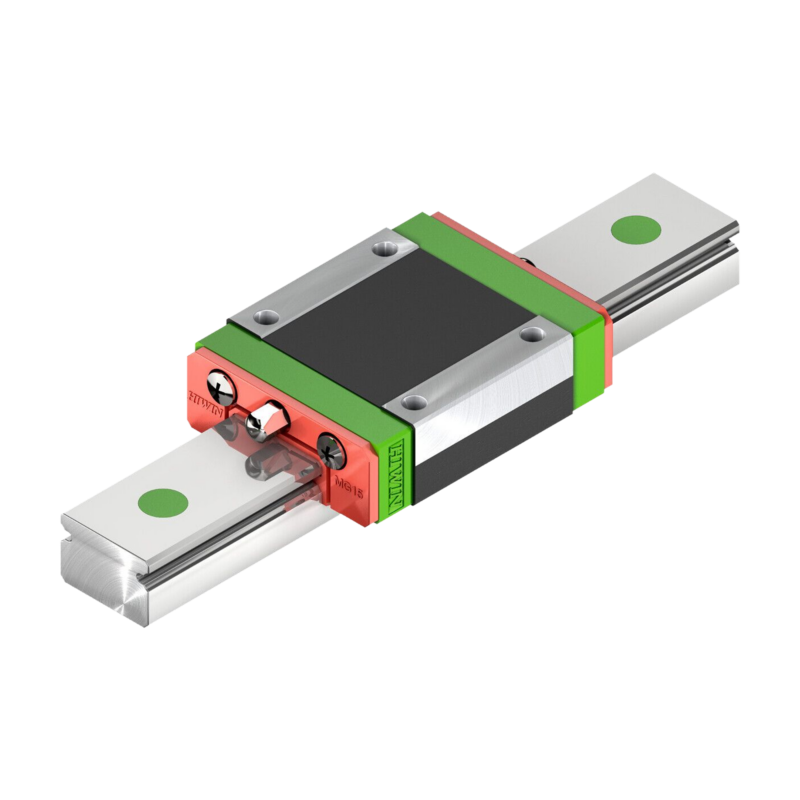

MG Series Miniature Linear Guideway
- Block Type
- Narrow (MGN), Wide (MGW)
- Model Size
- 2 - 15
- Block Length
- Standard (C), Long (H)
- Dynamic Load Rating
- 0.22 [kN] - 8.93 [kN]
The MG series is a miniature linear guideway that comes in a compact size with a Gothic arch contact design that offers high stiffness and high rigidity against moment loads in all directions. The MG series also offers anti-corrosion protection: a stainless steel (M) option, with carbon steel as standard. MGNR and MGWR rails in sizes 2, 3 and 5 are supplied in stainless steel only. The MG series is available in a narrow block type (MGN) and also with an enlarged width (MGW).
Applications
- Semiconductor equipment
- PCB and IC equipment
- Medical equipment
- Robotics
- Measuring equipment
- Automation equipment
- Printers
- Miniature sliding machinery
Variants
MGN is the narrow block and MGW the enlarged-width block; C is the standard block length and H the long block. Unlike the full-size series, these letters describe width and length rather than load rating. Size 5 is supplied only with the outer recirculation module (-O).
| Part Number | Block Type | Model Size (mm) | Block Length | Dynamic Load Rating (kN) | Configure |
|---|---|---|---|---|---|
| MGN2C | Narrow | 2 | Standard | 0.22 | Configure ↗ |
| MGN3C | Narrow | 3 | Standard | 0.29 | Configure ↗ |
| MGN3H | Narrow | 3 | Long | 0.39 | Configure ↗ |
| MGN5C-O | Narrow | 5 | Standard | 0.54 | Configure ↗ |
| MGN5H-O | Narrow | 5 | Long | 0.67 | Configure ↗ |
| MGN5HL-O | Narrow | 5 | Long | 0.67 | Configure ↗ |
| MGN7C | Narrow | 7 | Standard | 0.98 | Configure ↗ |
| MGN7H | Narrow | 7 | Long | 1.37 | Configure ↗ |
| MGN9C | Narrow | 9 | Standard | 1.86 | Configure ↗ |
| MGN9H | Narrow | 9 | Long | 2.55 | Configure ↗ |
| MGN12C | Narrow | 12 | Standard | 2.84 | Configure ↗ |
| MGN12H | Narrow | 12 | Long | 3.72 | Configure ↗ |
| MGN15C | Narrow | 15 | Standard | 4.61 | Configure ↗ |
| MGN15H | Narrow | 15 | Long | 6.37 | Configure ↗ |
| MGW2C | Wide | 2 | Standard | 0.41 | Configure ↗ |
| MGW3C | Wide | 3 | Standard | 0.54 | Configure ↗ |
| MGW3H | Wide | 3 | Long | 0.68 | Configure ↗ |
| MGW5C-O | Wide | 5 | Standard | 0.68 | Configure ↗ |
| MGW5CL-O | Wide | 5 | Standard | 0.68 | Configure ↗ |
| MGW7C | Wide | 7 | Standard | 1.37 | Configure ↗ |
| MGW7H | Wide | 7 | Long | 1.77 | Configure ↗ |
| MGW9C | Wide | 9 | Standard | 2.75 | Configure ↗ |
| MGW9H | Wide | 9 | Long | 3.43 | Configure ↗ |
| MGW12C | Wide | 12 | Standard | 3.92 | Configure ↗ |
| MGW12H | Wide | 12 | Long | 5.10 | Configure ↗ |
| MGW14C | Wide | 14 | Standard | 5.90 | Configure ↗ |
| MGW14H | Wide | 14 | Long | 7.70 | Configure ↗ |
| MGW15C | Wide | 15 | Standard | 6.77 | Configure ↗ |
| MGW15H | Wide | 15 | Long | 8.93 | Configure ↗ |
Part numbers & options
How a part number reads
MGN 12 C E 2 R1600 E Z1 P M II + U + RC
- MGN
- Series — MGN narrow · MGW wide
- 12
- Model size — 2 · 3 · 5 · 7 · 9 · 12 · 14 · 15
- C
- Block type — C standard · H long
- E
- Block version — E special block · none standard
- 2
- Number of blocks per rail
- R1600
- Rail length (mm)
- E
- Rail version — E special rail · none standard
- Z1
- Preload — ZF light clearance · Z0 very light · Z1 light (Z1 unavailable for MG2 and MG3)
- P
- Precision — C normal · H high · P precision
- M
- Material — none carbon steel · M stainless steel · HC carbon steel with hard chrome treatment · NC carbon steel with hicoating treatment
- II
- Rails per axis — roman numeral count of rails on the same plane; no symbol for a single rail
- SS/U/EL
- Options — SS end seal (optional, MGN3) · U bottom seal (sizes 9, 12, 14, 15) · EL auxiliary lubrication module (MGN7, 9, 12, 15 and MGW9, 12)
- RC
- Reinforced cap — optional for MGN12, 15
- -O
- Outer recirculation module — the only build for size 5
The configurator assembles this number for you, with drawings and 3D CAD. Configure ↗
Accuracy classes
Three classes, chosen against the accuracy of the equipment; all three are offered on both non-interchangeable and interchangeable types.
- C Normal — General miniature automation where positioning accuracy is not critical.
- H High — The standard step up for equipment that positions repeatedly.
- P Precision — Measuring and semiconductor equipment; height tolerance tightens to ±0.01 mm.
Preload
Three levels from light clearance to light preload; heavier preload trades running clearance for stiffness.
- ZF Light clearance (4-10 µm) — Free-running fit; available in accuracy class C only.
- Z0 Very light preload (0-3 µm clearance) — The general-purpose setting, available in every accuracy class.
- Z1 Light preload (0.02C) — For stiffness-critical axes; not offered on MG2 and MG3.
Dust protection
End seals are standard on every size except MGN2 (optional on MGN3); bottom seals and reinforced caps are added by code after the model number. Bottom seals reduce the clearance under the block, so check H1 against the mounting surface.
- SS End seal — Orders the optional end seals for MGN3; all other sizes include them as standard.
- U Bottom seal — Seals the skirt under the block; offered on sizes 9, 12, 14 and 15.
- RC Reinforced cap — Sturdier caps for the rail mounting holes; optional for MGN12 and MGN15.
Material
Four material builds cover clean, corrosive and cost-driven environments.
- M Stainless steel — The anti-corrosion build for medical, semiconductor and washdown environments.
- HC Carbon steel with hard chrome treatment — Surface-treated corrosion resistance at a carbon-steel price.
- NC Carbon steel with hicoating treatment — Alternative coated build; no symbol in the model number means plain carbon steel.
